XBR65X850C Sony 65-Inch Class 4K Ultra Hd Tv Replacement Parts

view enlarged image in modal windowXBR65X850C 65-Inch Class 4K Ultra Hd Tv

Manufacturer
Sony Replacement Parts

Model Number
XBR65X850C

Description
65-Inch Class 4K Ultra Hd Tv

Parts List

CategoryPart NumberDescriptionDemand
1-458-628-41
Sony 3D Eyewear Tdg-bt500a
Cover,Cap4-299-531-01
Sony Ac Cover
Schematic Location: 206
7-600-025-97
Sony Acf (Ac2051y-35)2.0mmx200m Gry
7-600-032-61
Sony Acf (Cp9920isv) 1.5Mmx10m Gry
4-535-586-01
Sony Badge, Xbr Logo(h3.7)

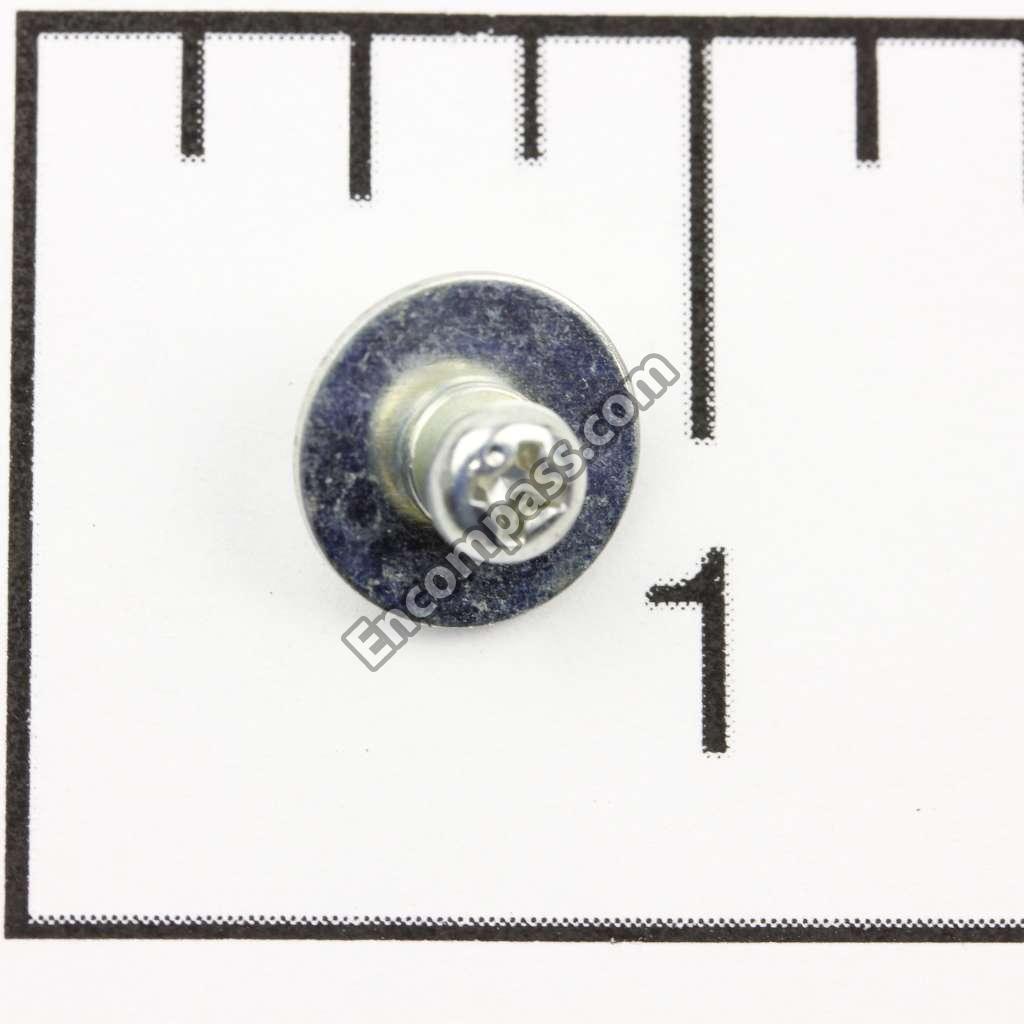

Screw4-562-758-01
Sony Bag, Screw A (Egl)
4-546-473-01
Sony Bracet,vesa(hwk)
Schematic Location: 257
Bracket, Flange, Blade4-562-661-01
Sony Bracket, Sc(hwk)
Schematic Location: 259
Bracket, Flange, Blade4-562-661-02
Sony Bracket, Sc(hwk)
Bracket, Flange, Blade4-546-442-01
Sony Bracket, Side Fl (Mold)
Schematic Location: 252
Bracket, Flange, Blade4-546-824-01
Sony Bracket, Sp (2L Hwk) A
Schematic Location: 210
Bracket, Flange, Blade4-546-443-11
Sony Bracket, Under Fl (Mold)
Schematic Location: 253
Bracket, Flange, Blade4-546-443-21
Sony Bracket, Under Fl (Mold)
Schematic Location: 253
Bracket, Flange, Blade4-564-318-01
Sony Bracket, Wifi
Bracket, Flange, Blade4-547-397-01
Sony Bracket, Wifi
Bracket, Flange, Blade4-564-318-02
Sony Bracket, Wifi
Bracket, Flange, Blade4-547-397-02
Sony Bracket, Wifi

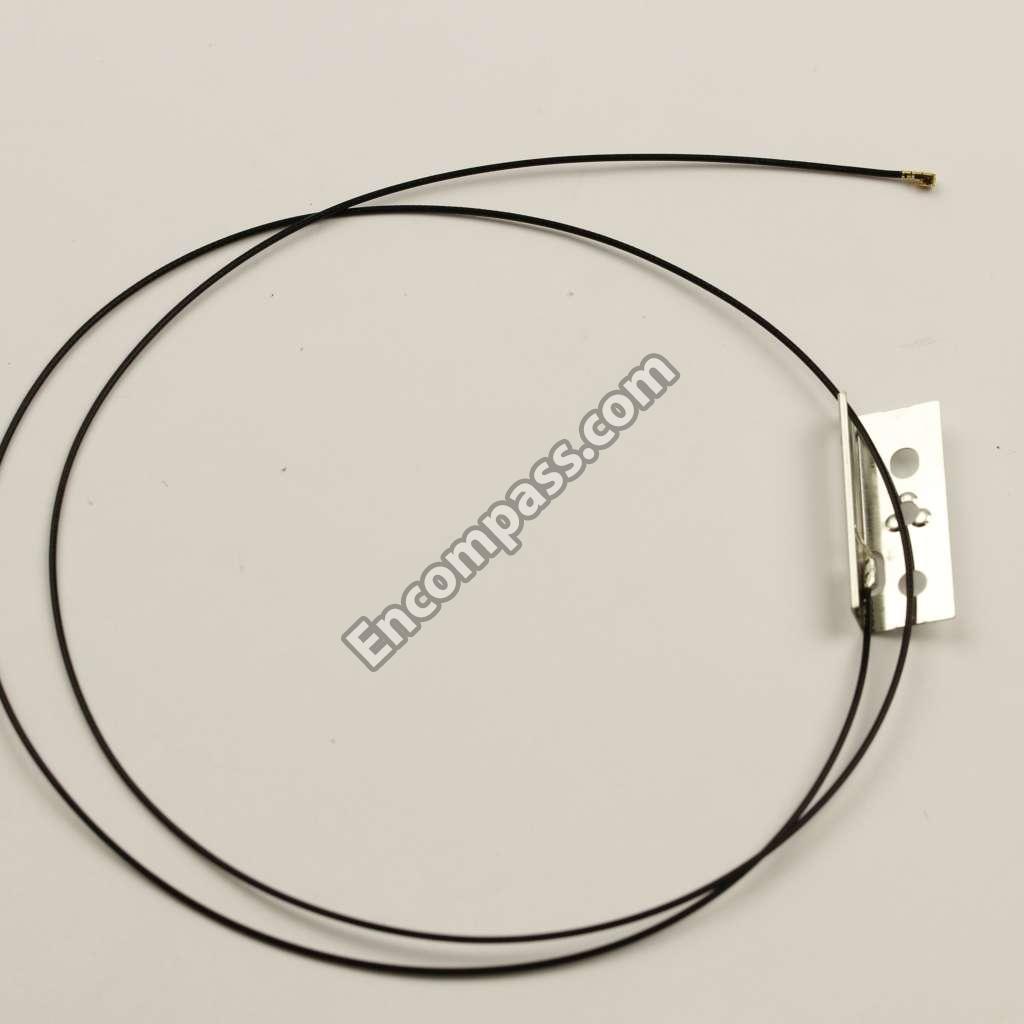

Antenna1-754-949-11
Sony Bt Antenna
Schematic Location: 207
Antenna1-754-948-11
Sony Bt Antenna
Schematic Location: 207

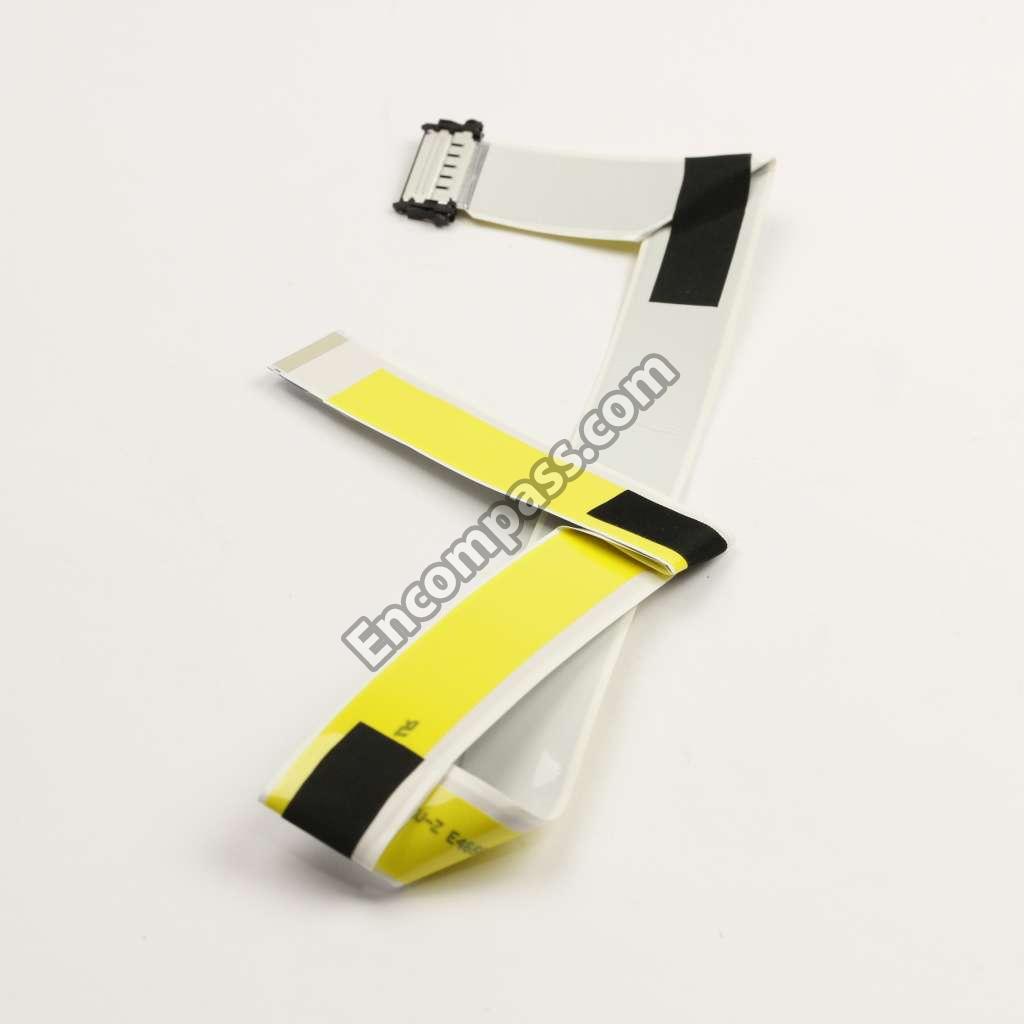

Cables, PCB Cable1-848-870-11
Sony Cable, Flexible Flat 41P
Schematic Location: 303
Cables, PCB Cable1-848-871-11
Sony Cable, Flexible Flat 51P
Schematic Location: 304
1-118-391-11
Sony Cap, Ceramic 0.01Mf X7r 1005Y
1-118-388-11
Sony Cap, Ceramic 0.047Mf X7r 1005
1-118-361-11
Sony Cap, Ceramic 0.1Mf X7r 1608
1-116-745-11
Sony Cap, Ceramic 0.22Mf X6s 1005
1-116-739-11
Sony Cap, Ceramic 0.47Mf X7r 2012
1-118-403-11
Sony Cap, Ceramic 1000Pf X7r 1005
1-118-965-11
Sony Cap, Ceramic 1000Pf X7r 3216
1-116-998-11
Sony Cap, Ceramic 10Mf 3216 25V
1-116-719-11
Sony Cap, Ceramic 10Mf X6s 2012
1-118-401-11
Sony Cap, Ceramic 1500Pf 50V
1-116-738-11
Sony Cap, Ceramic 1Mf X6s 1005
1-116-736-11
Sony Cap, Ceramic 1Mf X7r 1608
1-116-731-11
Sony Cap, Ceramic 2.2Mf X6s 1608
1-116-728-11
Sony Cap, Ceramic 2.2Mf X7r 2012
1-118-399-11
Sony Cap, Ceramic 2200Pf X7r 1005
1-116-714-11
Sony Cap, Ceramic 22Mf X6s 2012
1-116-712-11
Sony Cap, Ceramic 22Mf X6s 3216
1-116-725-11
Sony Cap, Ceramic 4.7Mf X6s 1608
1-116-723-11
Sony Cap, Ceramic 4.7Mf X7r 2012
1-116-721-11
Sony Cap, Ceramic 4.7Mf X7r 3216
1-118-395-11
Sony Cap, Ceramic 4700Pf X7r 1005
1-116-151-11
Sony Cap, Chip Ceramic 1000Pf
1-120-089-11
Sony Cap, Elect 100Mf 25V
1-120-086-11
Sony Cap, Elect 560Mf 25V
1-118-390-11
Sony Cap,cer 0.015Mf X7r 1005 25V
1-118-389-11
Sony Cap,cer 0.022Mf X7r 1005 25V
1-118-407-11
Sony Cap,cer 470Pf X7r 1005 50V
Case4-564-316-01
Sony Case, Bottom (L)
Case4-547-393-01
Sony Case, Bottom (L)
4-573-966-01
Sony Chassis Top(b)
4-573-967-01
Sony Chassis Top(l)
4-573-968-01
Sony Chassis Top(r)
4-573-969-01
Sony Chassis Top(u)
1-812-064-11
Sony Chip Varistor
Coil1-460-739-11
Sony Choke Coil 1.0Uh
Coil1-460-797-11
Sony Choke Coil 2.2Uh
Clamp4-262-708-03

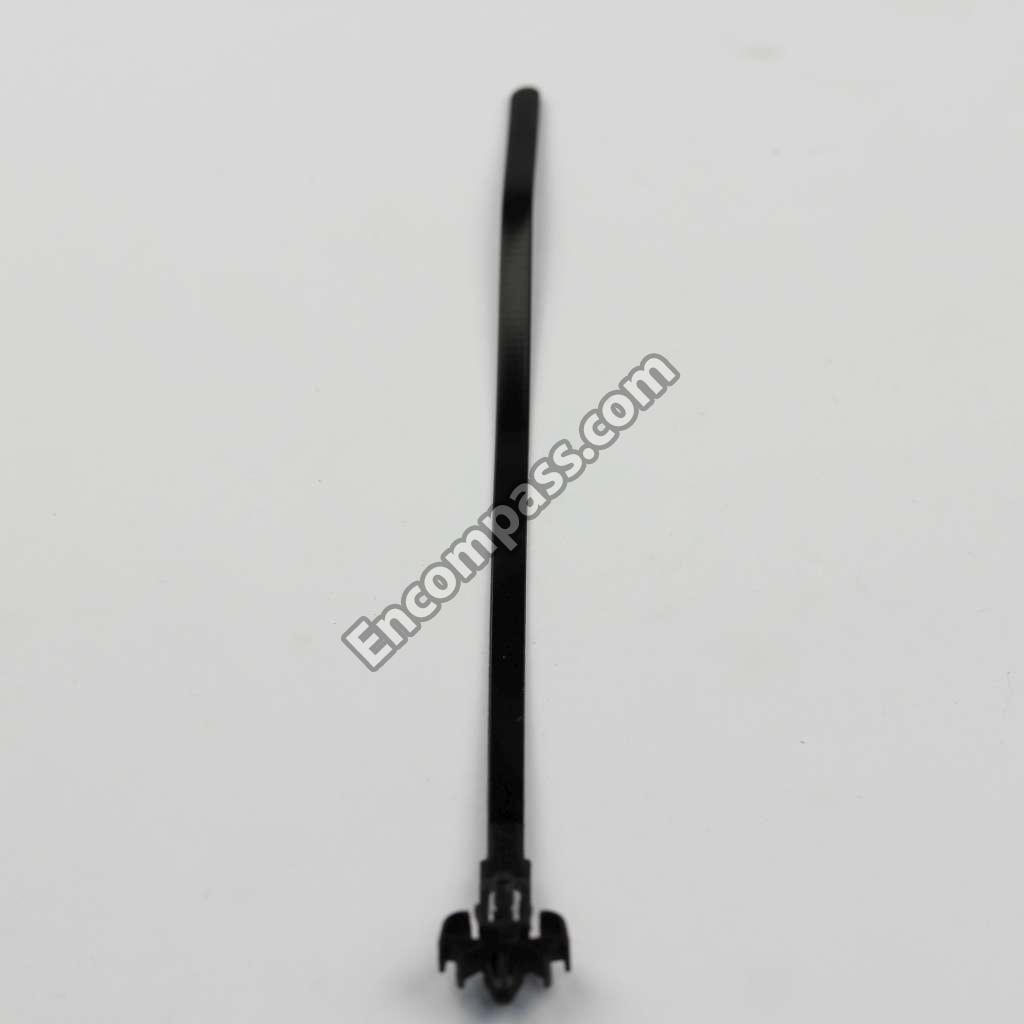

Sony Clamper, Cable
Coil1-460-615-11
Sony Coil, Choke 10.0Uh
Coil1-460-606-11
Sony Coil, Choke 2.2Uh
Coil1-460-358-11
Sony Coil, Choke 2.2Uh (4018)
Coil1-460-607-11
Sony Coil, Choke 3.3Uh
Coil1-460-599-11
Sony Coil, Choke 4.7Uh
Coil1-460-671-11
Sony Common Mode Choke Coil
Coil1-460-611-11
Sony Common Mode Choke Coil
Coil1-460-795-11
Sony Common Mode Choke Coils
A-2072-565-C
Sony Comple Svc (Xf) Bmfl La1
Schematic Location: 254
A-2072-564-C
Sony Comple Svc (Xf) Bmfl Uc2
Schematic Location: 254		Y
1-257-578-21
Sony Conductor, Network (1005X4)
1-234-400-21
Sony Conductor, Network (2010)
Connector1-842-664-21
Sony Connector (Rca 5Pin)
Connector1-910-109-95
Sony Connector Assy 28P
Schematic Location: 302
Connector1-910-110-76
Sony Connector Assy 28P
Connector1-779-936-51
Sony Connector, Ffc/fpc 18P
Circuit Board1-895-826-11

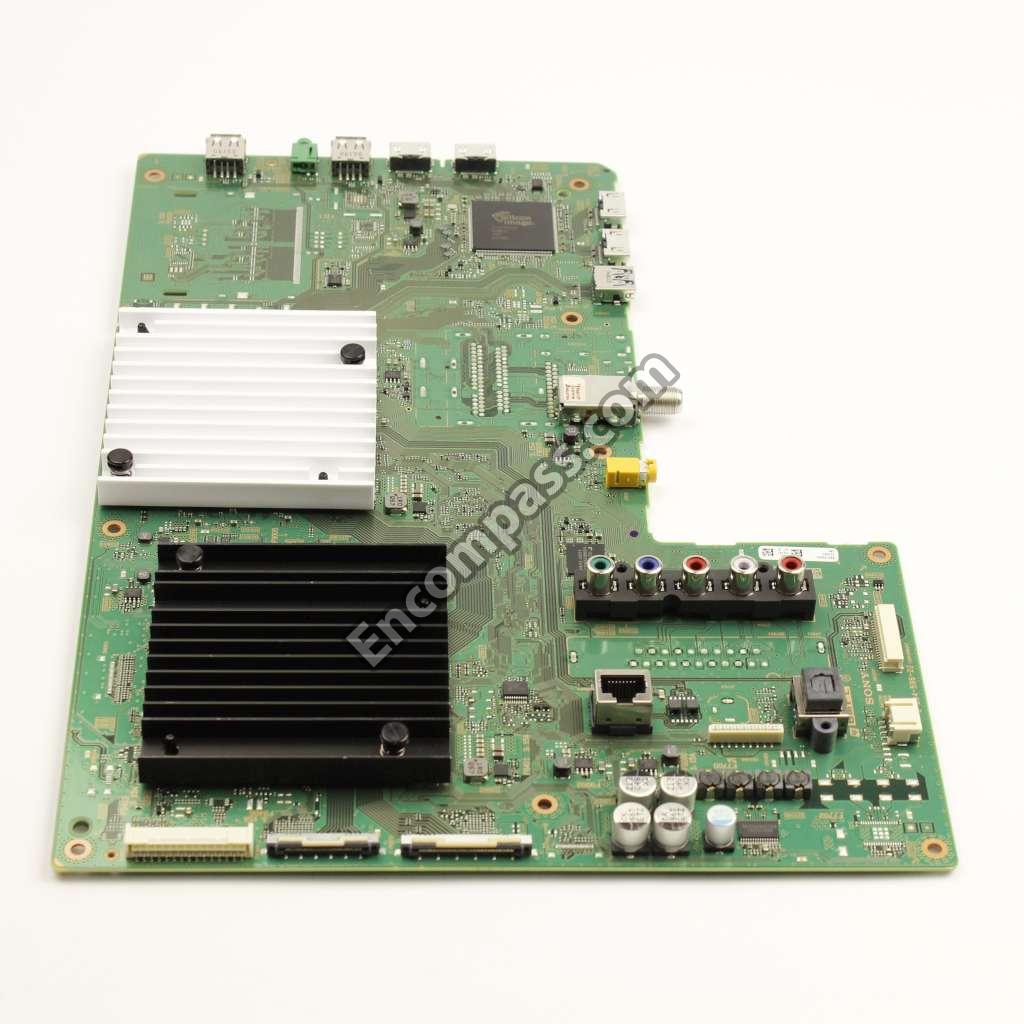

Sony Control Mt Board
Converter1-844-235-11
Sony Conversion Jack
Connector1-839-696-13
Sony Cord, Power (With Connector)
Cover,Cap4-564-317-01
Sony Cover, Top
Cover,Cap4-547-395-01
Sony Cover, Top
Cushion4-535-307-41
Sony Cushion 525A
Cushion4-569-378-01
Sony Cushion, Corner(egl)
Cushion4-546-873-11
Sony Cushion, Lower (2L Hwk)
Cushion4-546-873-51
Sony Cushion, Lower (2L Hwk)
Cushion4-546-875-51
Sony Cushion, Lower Center(2l Hwk)
Cushion4-546-875-11
Sony Cushion, Lower Center(2l Hwk)
Cushion4-546-874-51
Sony Cushion, Side(2l Hwk)
Cushion4-546-874-11
Sony Cushion, Side(2l Hwk)
Cushion4-546-871-51
Sony Cushion, Upper Center (2L Hwk)
Cushion4-546-871-11
Sony Cushion, Upper Center (2L Hwk)
6-503-911-01
Sony Di Cl-435f-aw01
6-502-961-01
Sony Di Da2j10100lY
Diode6-503-058-01
Sony Di Db2j31700l
Diode6-502-965-01
Sony Di Dz2j05600l
6-503-587-01
Sony Di Edzvt2r6.8b
6-503-579-01
Sony Di Rb521sm-30t2r
6-503-761-01
Sony Di Rb751s40,115
6-502-196-01
Sony Di Sml-d12y8wt86sp
6-503-912-01
Sony Di_ltrb R8sf
1-400-851-11
Sony Emi, Ferrite (Smd) (1005)
Connector1-843-965-11
Sony Ethernet Connector
Connector1-843-664-11
Sony Ethernet Connector
1-400-462-21
Sony Ferrite, Emi (Smd) (1005)
Connector1-842-546-21
Sony Ffc/fpc Connector (Non Zif)51p
Cables, PCB Cable1-849-123-11
Sony Flexible Flat Cable 41P
Cables, PCB Cable1-849-116-11
Sony Flexible Flat Cable 51P
Fuse, Thermal Fuse, Breaker1-523-393-11
Sony Fuse (1608/3.15 A)
Fuse, Thermal Fuse, Breaker1-523-395-11
Sony Fuse (1608/5.0 A)
Fuse, Thermal Fuse, Breaker1-576-850-31
Sony Fuse, Micro (1608)Y
Gasket , Seal4-566-117-01
Sony Gasket (Bmf)
Gasket , Seal4-567-123-01
Sony Gasket (Hwk Std)
Gasket , Seal4-576-814-01
Sony Gasket L50xw25x0.2t
Gasket , Seal4-576-813-01
Sony Gasket L8xw6x3.0t
Converter1-474-617-21
Sony Gl1ah(ch)-static Converter(tv)
Wire1-910-109-96
Sony Harness Assy (Main)
Schematic Location: 301
Wire1-910-110-87
Sony Harness Assy (Main)
Connector1-842-680-11

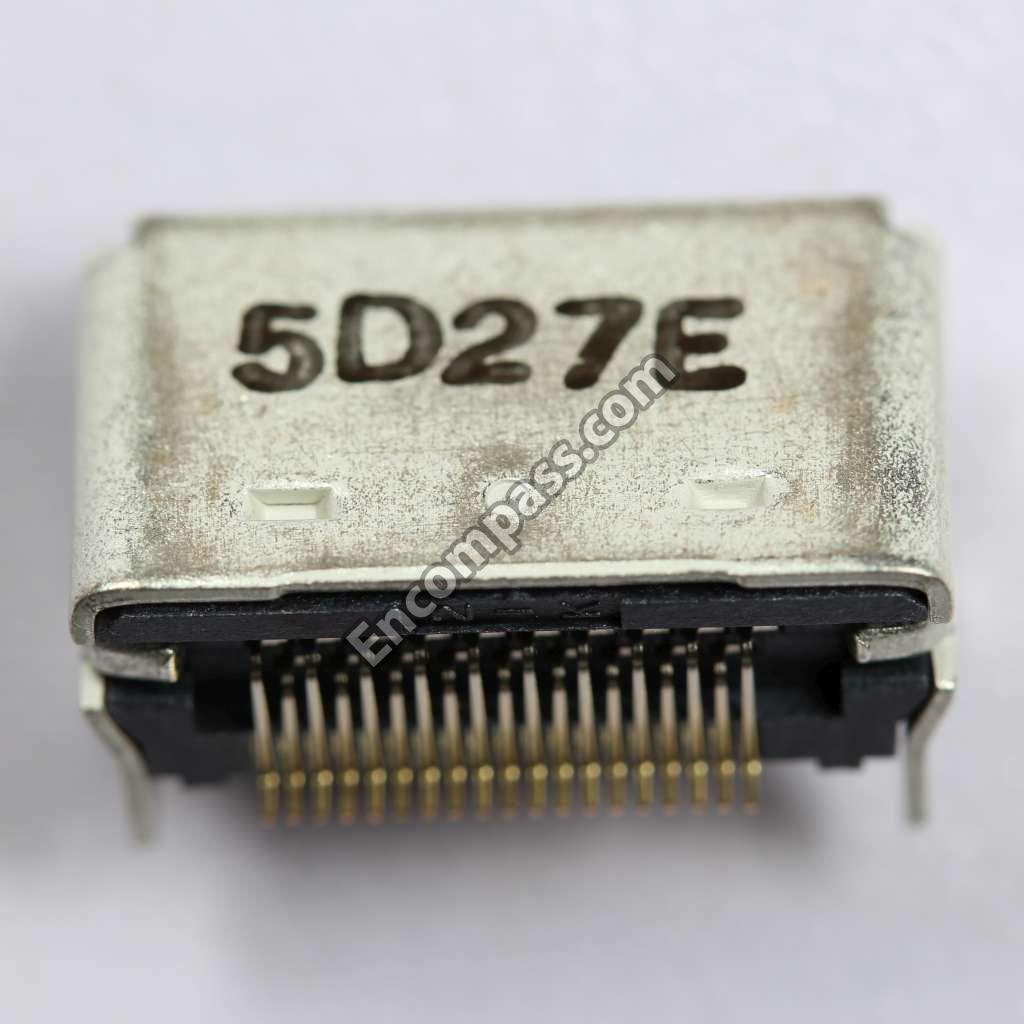

Sony Hdmi Connector
Connector1-822-637-31
Sony Hdmi Connector
1-843-917-11
Sony Header Assembly 30P
1-818-692-23
Sony Header Assembly 40P
1-842-566-12
Sony Header Assembly For Pwb 4P
4-549-395-01
Sony Heat Sink (Muff C)
4-547-207-01
Sony Heat Sink(sc)
4-547-493-01
Sony Heat, Sink (Muff)
Holder4-549-188-01
Sony Holder(hs Muf)
Holder4-548-743-01
Sony Holder, Hs Ws (Muf)
Jack1-842-677-22

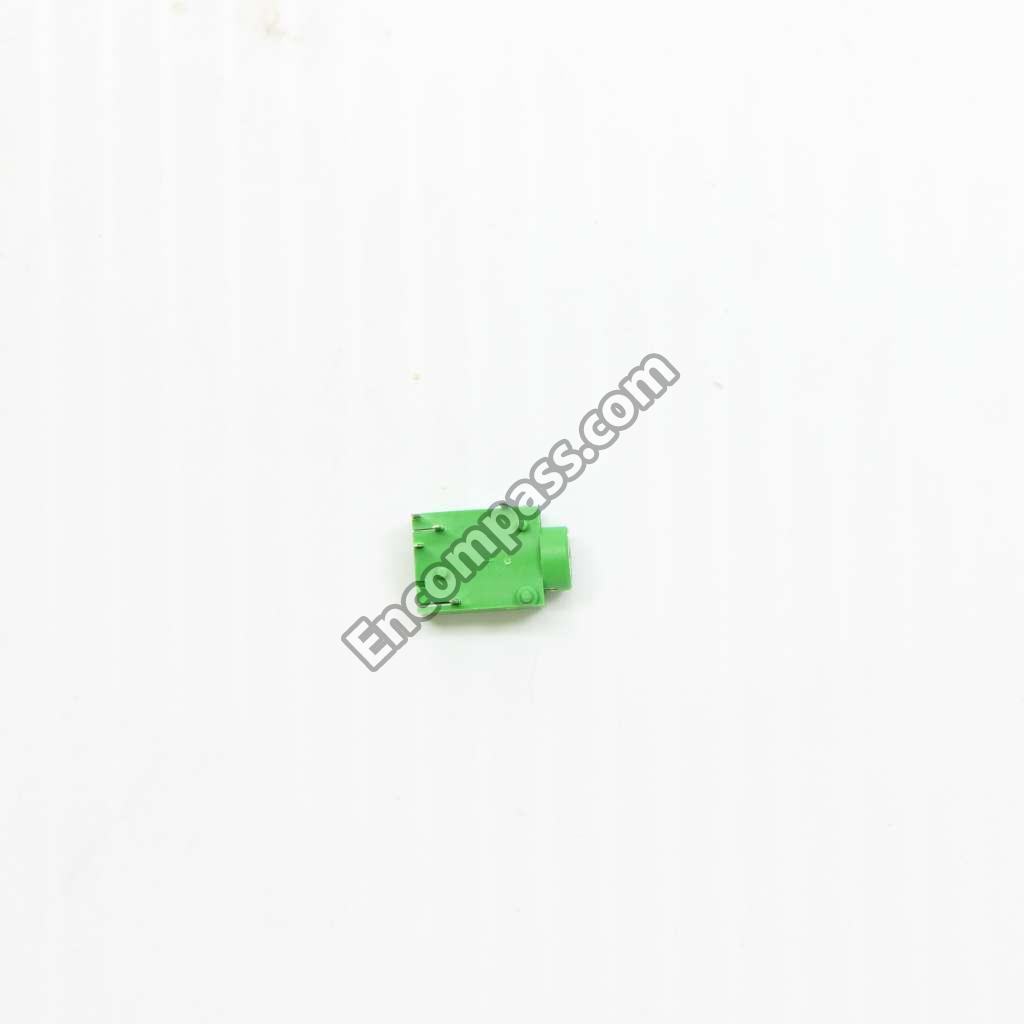

Sony Hp Jack
Jack1-842-573-21
Sony Hp Jack

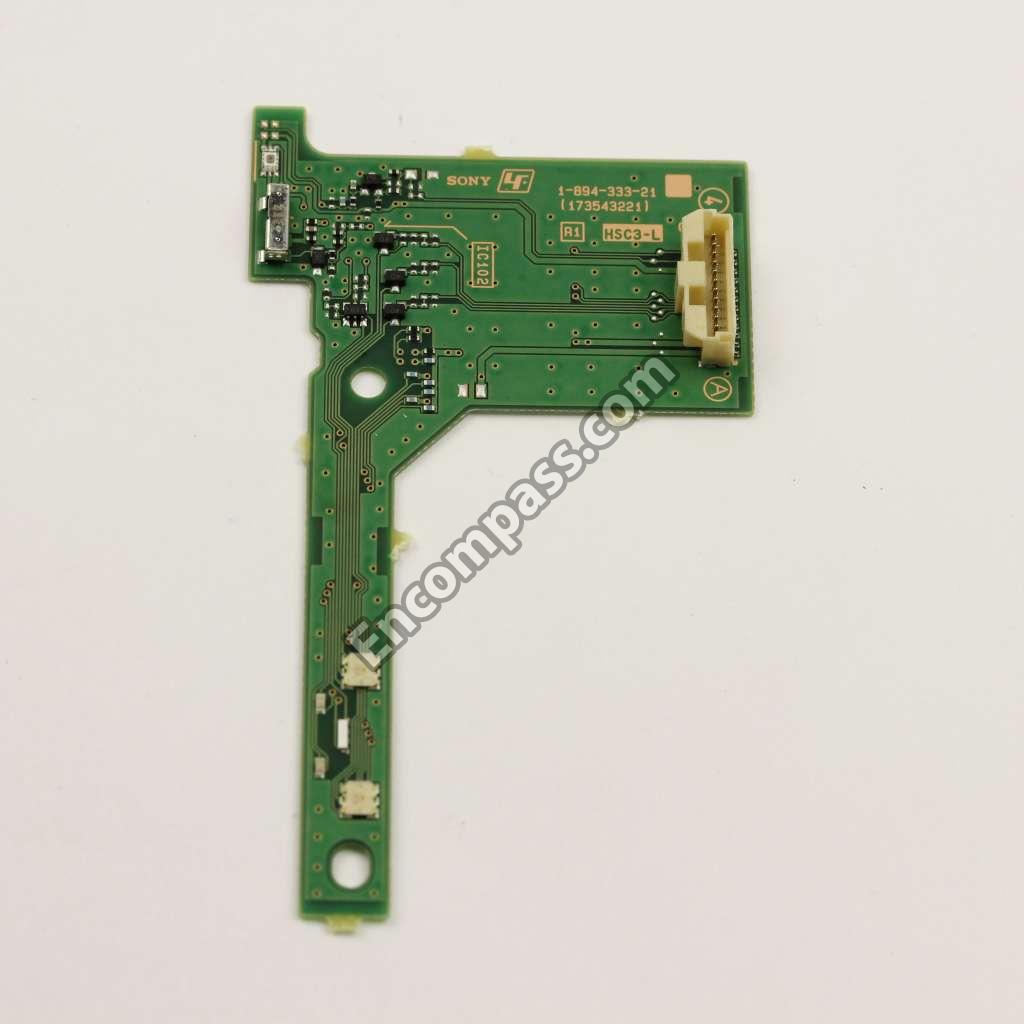

A-2066-086-A
Sony Hsc3_l Mount
IC6-721-997-01
Sony Ic Aoz1236qi-01
IC6-721-990-01
Sony Ic Aoz1267qi
IC6-716-462-01
Sony Ic Bd00ga3wefj-e2
IC6-720-507-01
Sony Ic Bd18ic0whfv-gtr
IC6-718-253-01
Sony Ic Bd2231g-tr
IC6-722-077-01
Sony Ic Bd9b300muv
IC6-721-356-01
Sony Ic Bd9d320efj-e2
IC6-721-097-01
Sony Ic Bu18uc3wg-tr
IC6-722-100-01
Sony Ic H5tq4g63cfr-rdcr
IC6-721-759-01
Sony Ic K4b1g1646g-bcma
IC6-721-472-01
Sony Ic K4b4g1646d-bcma000
Power Control6-705-514-01
Sony Ic Max3222ipwr
IC6-716-843-01
Sony Ic Mm3285fnre
IC6-719-256-01
Sony Ic Mm3411a10nre
IC6-719-422-01
Sony Ic Mm3411a25nre
IC6-721-935-01
Sony Ic Mt41k256m16ha-107:e
IC6-722-132-01
Sony Ic Mt41k64m16tw-107:j
IC6-722-139-01
Sony Ic Mt5830kehj
IC6-721-758-01
Sony Ic Nt5cb64m16fp-ek
IC6-721-987-11
Sony Ic Pic16f527t-i/ss
IC6-719-288-01
Sony Ic Pst8628ul
IC6-719-313-01
Sony Ic Pst8652ul
IC6-600-880-01
Sony Ic Rs-250
IC6-600-828-01
Sony Ic Rs-270
IC6-722-137-01
Sony Ic Sii9777
Power Control6-718-194-01
Sony Ic Tpa6138a2pwr
IC6-715-164-11
Sony Ic Tps2553dbvr
IC6-715-164-01
Sony Ic Tps2553dbvr
1-469-084-21
Sony Inductor, Ferrite Bead 1000
1-469-080-11
Sony Inductor,ferrite Bead 120 1005
Blaster1-845-283-21
Sony Ir BlasterY
4-081-035-01
Sony Joint
2-639-807-12
Sony Joint
Label4-563-765-01
Sony Label, Rear Terminal
Schematic Location: 204
Label4-563-764-01
Sony Label, Rear Terminal
Schematic Location: 204
Label4-563-756-01
Sony Label, Side Terminal (L)
Schematic Location: 202
Label4-563-760-11
Sony Label, Under Terminal
Schematic Location: 203
Label4-563-760-01
Sony Label, Under Terminal
Schematic Location: 203
Light4-564-313-01
Sony Light, Guide
Light4-547-390-01
Sony Light, Guide
Jack1-842-576-11
Sony Mini Jack (Ra)
Connector1-842-676-23
Sony Optical Out Connector
Panel4-564-312-01
Sony Panel, Ornament
Panel4-547-389-01
Sony Panel, Ornament
Jack1-842-665-31
Sony Pin Jack 3P
Jack1-842-663-41
Sony Pin Jack 5P
Jack1-842-663-31
Sony Pin Jack 5P
Plate4-563-900-71
Sony Plate, Front(2l Hwk)
Plate4-563-900-11
Sony Plate, Front(2l Hwk)
Power Cord1-839-679-13

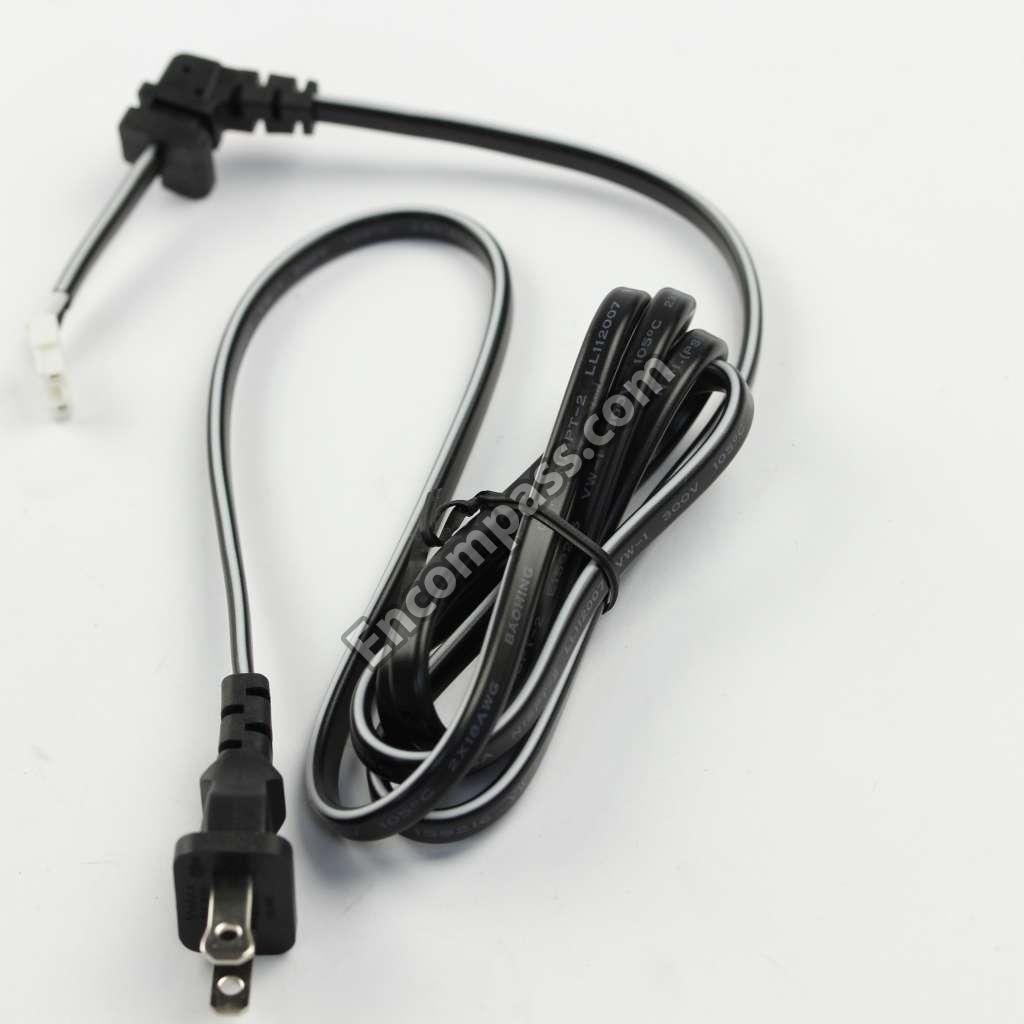

Sony Power-supply Cord (With Conn.)
Belt, Pulley4-534-964-01
Sony Pulley, Stand (Hwi)
Transformer1-697-376-11
Sony Pulse Transformer
1-814-887-11
Sony Quarts Crystal Unit
1-814-485-11
Sony Quartz Crystal Unit
1-814-471-11
Sony Quartz Crystal Unit
1-814-865-11
Sony Quartz Crystal Unit (24Mhz)
1-814-864-11
Sony Quartz Crystal Unit (24Mhz)
1-814-788-11
Sony Quartz Crystal Units 37.125Mhz
1-814-687-11
Sony Quartz Crystal Units 37.125Mhz
Cables, PCB Cable1-848-907-11

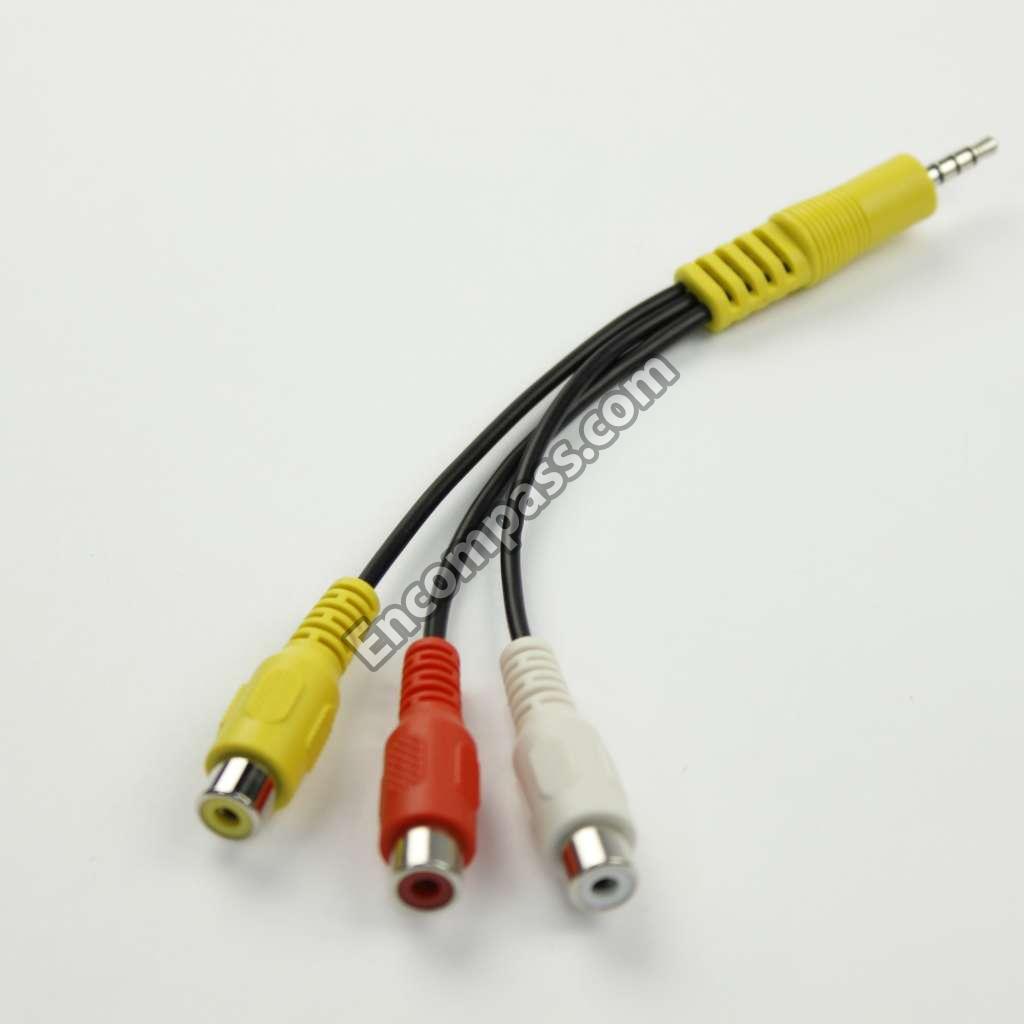

Sony Rca Conversion Cable
Cables, PCB Cable1-848-803-11
Sony Rca Conversion Cable
Guide4-562-216-11
Sony Reference Guide
Control1-492-978-21

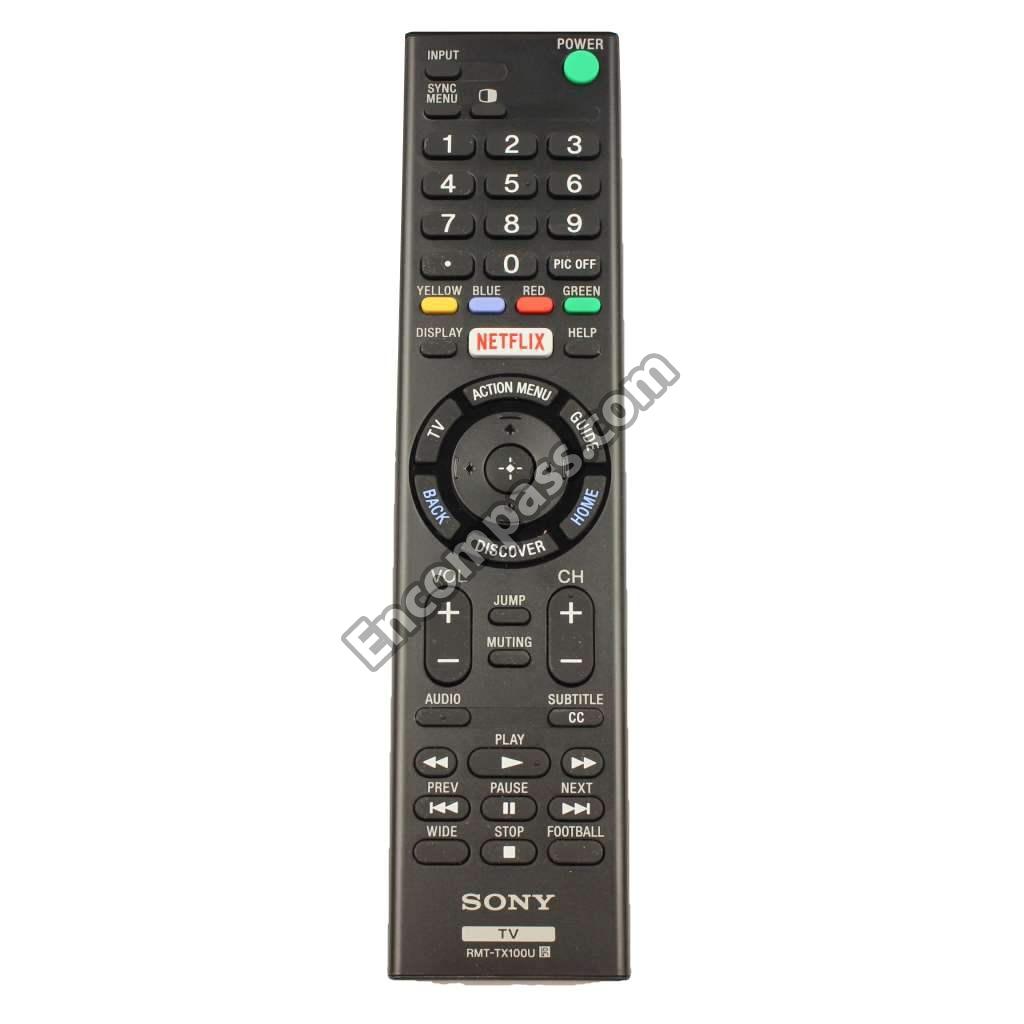

Sony Remote (Rmt-tx100u)
Remote Control1-492-949-12
Sony Remote Smart (Rmf-tx100u)
Triac, Diode or Resistor1-218-981-91
Sony Res, Chip 220K
Triac, Diode or Resistor1-257-350-11
Sony Res, Chip(surge Resistant) 22
1-250-473-11
Sony Res, Metal Film Chip 120(1005)
1-250-523-11
Sony Res, Metal Film Chip 15K(1005)
1-250-525-11
Sony Res, Metal Film Chip 18K(1005)
1-250-526-11
Sony Res, Metal Film Chip 20K(1005)
1-250-479-11
Sony Res, Metal Film Chip 220(1005)
1-250-527-11
Sony Res, Metal Film Chip 22K(1005)
1-250-480-11
Sony Res, Metal Film Chip 240(1005)
1-250-528-11
Sony Res, Metal Film Chip 24K 1/16W
1-250-531-11
Sony Res, Metal Film Chip 33K(1005)
1-250-533-11
Sony Res, Metal Film Chip 39K(1005)
1-250-535-11
Sony Res, Metal Film Chip 47K(1005)
1-250-589-11
Sony Res, Metal Film Chip 75 (1608)
1-250-541-11
Sony Res, Metal Film Chip 82K(1005)
Triac, Diode or Resistor1-257-544-21
Sony Res, Network 100 (1005X4)
Triac, Diode or Resistor1-234-381-21
Sony Res, Network 100Kx4 (1005)
Triac, Diode or Resistor1-234-372-11
Sony Res, Network 100X4 (1005)Y
Triac, Diode or Resistor1-234-378-21
Sony Res, Network 10Kx4 (1005)
Triac, Diode or Resistor1-234-370-11
Sony Res, Network 22X4 (1005)
Triac, Diode or Resistor1-200-035-21
Sony Res, Network 4.7 (1005X4)
Triac, Diode or Resistor1-234-377-21
Sony Res, Network 4.7Kx4 (1005)
Triac, Diode or Resistor1-257-543-21
Sony Res, Network 47 (1005X4)
Triac, Diode or Resistor1-234-371-11
Sony Res, Network 47X4 (1005)
Triac, Diode or Resistor1-257-551-21
Sony Res, Network 75 (1005X4)
1-250-497-11
Sony Res,metal Film Chip 1.2K(1005)
1-250-499-11
Sony Res,metal Film Chip 1.5K(1005)
1-250-543-11
Sony Res,metal Film Chip 100K(1005)
1-250-547-11
Sony Res,metal Film Chip 150K(1005)
1-250-503-11
Sony Res,metal Film Chip 2.2K(1005)
1-250-505-11
Sony Res,metal Film Chip 2.7K(1005)
1-250-507-11
Sony Res,metal Film Chip 3.3K(1005)
1-250-509-11
Sony Res,metal Film Chip 3.9K(1005)
1-250-555-11
Sony Res,metal Film Chip 330K(1005)
1-250-511-11
Sony Res,metal Film Chip 4.7K(1005)
1-250-512-11
Sony Res,metal Film Chip 5.1K(1005)
1-250-515-11
Sony Res,metal Film Chip 6.8K(1005)
1-250-517-11
Sony Res,metal Film Chip 8.2K(1005)
Screw2-990-421-41
Sony Screw (+Psw) (M3x6)
Screw4-452-935-11
Sony Screw , +Pwh M3x6
Screw2-580-639-01
Sony Screw, +Bvtp 4X12 Type2 It-3
Screw4-256-393-11
Sony Screw, +Psw M3x6 W12
Screw4-256-393-12
Sony Screw, +Psw M3x6 W12
Screw2-580-593-01
Sony Screw, +Psw M3x8
Screw4-159-298-01
Sony Screw, +Psw M4x10Y
Screw2-580-602-01
Sony Screw, +Psw M4x12Y
Screw2-580-600-11
Sony Screw, +Psw M4x8
Screw4-567-081-01
Sony Screw, +Psw M6x12
Screw4-268-126-02
Sony Screw, Ornamental M6x12Y
Insulation4-549-182-01
Sony Sheet, Insulation(hwk 2L)
Schematic Location: 256
4-549-528-01
Sony Sheet, Thermal (Sc)
4-549-528-11
Sony Sheet, Thermal (Sc)
4-549-186-01
Sony Sheet, Thermal(bm)
Adhesive7-600-040-44
Sony Silicon Compound 333Cc Gry
Slide2-650-770-21
Sony Slide, Clamp
Schematic Location: 258		Y
Speaker1-859-007-21
Sony Speaker Box Assy
Schematic Location: 209
Speaker1-859-007-11
Sony Speaker Box Assy
Schematic Location: 208
Stand4-546-910-01
Sony Stand Neck Assy
Shaft4-549-373-01
Sony Stand, Shaft (2L Hwk) A
Stopper3-674-673-22
Sony Stopper (A)
Switch1-798-511-21
Sony Switch Unit (Sm-g-ww)Y
Switch1-798-510-31
Sony Switch Unit (Sm-g-ww)
Schematic Location: 211
Tape7-600-031-96
Sony Tape (3M 1350Fw-1)15mmx66m Wht
Tape7-632-452-24
Sony Tape (No.303) 18Mmx35m YelY
Tape4-576-817-01
Sony Tape Double Side L80xw4xt0.8
Tape4-576-816-01
Sony Tape Mylar L15xw5xt0.1
Tape4-576-815-01
Sony Tape Mylar L17xw17xt0.05
6-552-424-01
Sony Tr Dra5144e0l
Transistor6-552-444-01
Sony Tr Drc5144e0l
6-552-891-01
Sony Tr Lsar523ubfs8tl
6-552-922-01
Sony Tr Lta014eubfs8tl
6-553-443-01
Sony Tr Pdta114eu
6-553-104-01
Sony Tr Pdta144eu
6-553-105-01
Sony Tr Pdtc144eu
6-552-484-01
Sony Tr Re1c002zpfu7tl
6-550-901-01
Sony Tr Rn1302(te85l.f)
6-552-845-01
Sony Tr Ssm3k121tu,lsoyf
Transistor8-729-030-53
Sony Transistor 2Pc4081r-115
Transistor8-729-230-61
Sony Transistor 2Sa1586-yg
Transistor6-550-978-01
Sony Transistor Rn1902(t5rsony,d,f)
Tray, Support , Ice Maker Tray4-546-867-11
Sony Tray (2L Hwk)
Tray, Support , Ice Maker Tray4-546-867-71
Sony Tray (2L Hwk)
Cover,Cap4-546-825-11
Sony Under Cover (2L_hwk) A
Schematic Location: 212
Cover,Cap4-546-825-12
Sony Under Cover (2L_hwk) A
Label3-876-036-71
Sony Uni-label, Blank
8-594-257-00
Sony Universal Sil-tu Sut-ra241zpY
Connector1-844-233-11
Sony Usb Connector
Connector1-843-576-11
Sony Usb Connector
Connector1-843-199-11
Sony Usb Connector Type A
1-802-090-21
Sony Varistor, Chip
Module1-458-853-11
Sony Wlan/bt Module(11ac)Y

About Sony

Sony is a manufacturer of consumer and professional electronics, gaming, and entertainment equipment. Sony Corporation is a Japanese multinational conglomerate corporation headquartered in Knan, Minato, Tokyo. Its diversified business includes consumer and professional electronics, gaming, and entertainment. Sony is a leading manufacturer of audio, video, communications, and information technology products for the consumer and professional markets. Sony products are reliable and affordable and there are options for any home or budget. They range from computers and professional technology to consumer electronics and home entertainment systems.
