XBR55X900C Sony 55-Inch 4K Ultra Hd Lcd Tv Replacement Parts

view enlarged image in modal windowXBR55X900C 55-Inch 4K Ultra Hd Lcd Tv

Manufacturer
Sony Replacement Parts

Model Number
XBR55X900C

Description
55-Inch 4K Ultra Hd Lcd Tv

Parts List

CategoryPart NumberDescriptionDemand
GlassesX-2588-944-1
Sony 3D Glasses Tdg-500p(1pack)
Cover,Cap4-558-397-01
Sony Ac Cover (Crn)
Schematic Location: 5
Bag4-447-722-32
Sony Bag,protection Pehd(1500x1200)
Cover,Cap4-549-986-01
Sony Bg Cover (L Crn) , AY
Bracket, Flange, Blade4-549-951-01
Sony Bracket Top (L)
Cover,Cap4-549-962-01
Sony Bracket, Card Cover (Crn)
Schematic Location: 53
Bracket, Flange, Blade4-546-444-11
Sony Bracket, Side F (Mold)
Schematic Location: 54
Bracket, Flange, Blade4-546-444-31
Sony Bracket, Side F (Mold)
Schematic Location: 54
Bracket, Flange, Blade4-547-397-02
Sony Bracket, Wifi
Schematic Location: 606
Bracket, Flange, Blade4-564-318-01
Sony Bracket, Wifi
Schematic Location: 606
Bracket, Flange, Blade4-564-318-02
Sony Bracket, Wifi
Antenna1-754-956-11
Sony Bt Antenna
Schematic Location: 59
1-118-391-11
Sony Cap, Ceramic 0.01Mf X7r 1005Y
1-118-388-11
Sony Cap, Ceramic 0.047Mf X7r 1005
1-118-361-11
Sony Cap, Ceramic 0.1Mf X7r 1608
1-116-745-11
Sony Cap, Ceramic 0.22Mf X6s 1005
1-116-742-11
Sony Cap, Ceramic 0.22Mf X7r 1608
1-116-739-11
Sony Cap, Ceramic 0.47Mf X7r 2012
1-118-403-11
Sony Cap, Ceramic 1000Pf X7r 1005Y
1-118-965-11
Sony Cap, Ceramic 1000Pf X7r 3216
1-116-998-11
Sony Cap, Ceramic 10Mf 3216 25V
1-116-718-11
Sony Cap, Ceramic 10Mf X6s 2012
1-116-719-11
Sony Cap, Ceramic 10Mf X6s 2012
1-118-401-11
Sony Cap, Ceramic 1500Pf 50V
1-116-738-11
Sony Cap, Ceramic 1Mf X6s 1005
1-116-736-11
Sony Cap, Ceramic 1Mf X7r 1608
1-116-732-11
Sony Cap, Ceramic 2.2Mf X5r 1005
1-116-730-11
Sony Cap, Ceramic 2.2Mf X6s 1608
1-116-731-11
Sony Cap, Ceramic 2.2Mf X6s 1608
1-116-728-11
Sony Cap, Ceramic 2.2Mf X7r 2012
1-118-399-11
Sony Cap, Ceramic 2200Pf X7r 1005
1-118-412-11
Sony Cap, Ceramic 220Pf X7r 1005
1-116-714-11
Sony Cap, Ceramic 22Mf X6s 2012
1-116-712-11
Sony Cap, Ceramic 22Mf X6s 3216
1-116-725-11
Sony Cap, Ceramic 4.7Mf X6s 1608
1-116-723-11
Sony Cap, Ceramic 4.7Mf X7r 2012
1-116-721-11
Sony Cap, Ceramic 4.7Mf X7r 3216
1-118-395-11
Sony Cap, Ceramic 4700Pf X7r 1005
1-116-151-11
Sony Cap, Chip Ceramic 1000Pf
1-120-089-11
Sony Cap, Elect 100Mf 25V
1-120-086-11
Sony Cap, Elect 560Mf 25V
1-118-390-11
Sony Cap,cer 0.015Mf X7r 1005 25V
1-118-389-11
Sony Cap,cer 0.022Mf X7r 1005 25V
1-118-407-11
Sony Cap,cer 470Pf X7r 1005 50V
Case4-547-394-01
Sony Case, Bottom (N)
Schematic Location: 601
1-812-064-11
Sony Chip Varistor
Coil1-460-739-11
Sony Choke Coil 1.0Uh
Coil1-460-797-11
Sony Choke Coil 2.2Uh
Clamp4-262-708-03
Sony Clamper, Cable
Clamp4-485-653-01
Sony Clamper, Cable (M)
Coil1-460-615-11
Sony Coil, Choke 10.0Uh
Coil1-460-606-11
Sony Coil, Choke 2.2Uh
Coil1-460-358-11
Sony Coil, Choke 2.2Uh (4018)
Coil1-460-607-11
Sony Coil, Choke 3.3Uh
Coil1-460-599-11
Sony Coil, Choke 4.7Uh
Coil1-457-885-11
Sony Common Mode Choke Coil
Coil1-460-611-11
Sony Common Mode Choke Coil
Coil1-460-671-11
Sony Common Mode Choke Coil
Coil1-460-795-11
Sony Common Mode Choke Coils
A-2072-546-A
Sony Comple Svc (Xb) Bmfw (Main Cba)la1
Schematic Location: 55
A-2072-545-A
Sony Comple Svc (Xb) Bmfw (Main Cba)uc2
Schematic Location: 55
1-216-864-91
Sony Conductor, Chip(1608)Y
1-257-578-21
Sony Conductor, Network (1005X4)
1-234-400-21
Sony Conductor, Network (2010)
Connector1-842-664-21
Sony Connector (Rca 5Pin)
Connector1-910-110-01
Sony Connector Assy 14P
Schematic Location: 102
Connector1-779-936-51
Sony Connector, Ffc/fpc 18P
Converter1-844-235-11
Sony Conversion Jack
Cover,Cap4-547-395-01
Sony Cover, Top
Schematic Location: 605
Cover,Cap4-564-317-01
Sony Cover, Top
Schematic Location: 605
6-503-911-01
Sony Di Cl-435f-aw01
6-502-961-01
Sony Di Da2j10100l
Diode6-503-058-01
Sony Di Db2j31700l
Diode6-502-965-01
Sony Di Dz2j05600l
6-503-587-01
Sony Di Edzvt2r6.8b
6-503-579-01
Sony Di Rb521sm-30t2r
6-503-761-01
Sony Di Rb751s40,115
6-502-196-01
Sony Di Sml-d12y8wt86sp
6-503-912-01
Sony Di_ltrb R8sf
1-400-851-11
Sony Emi, Ferrite (Smd) (1005)
Connector1-843-664-11
Sony Ethernet Connector
Connector1-843-965-11
Sony Ethernet Connector
1-400-462-21
Sony Ferrite, Emi (Smd) (1005)
Connector1-842-546-21
Sony Ffc/fpc Connector (Non Zif)51p
Connector1-844-270-71
Sony Ffc/fpc Connector (Zif) 24P
Filter1-481-530-21
Sony Filter, Clamp (Ferrite Core)
Filter1-234-939-21
Sony Filter, Emi Removal (Smd)

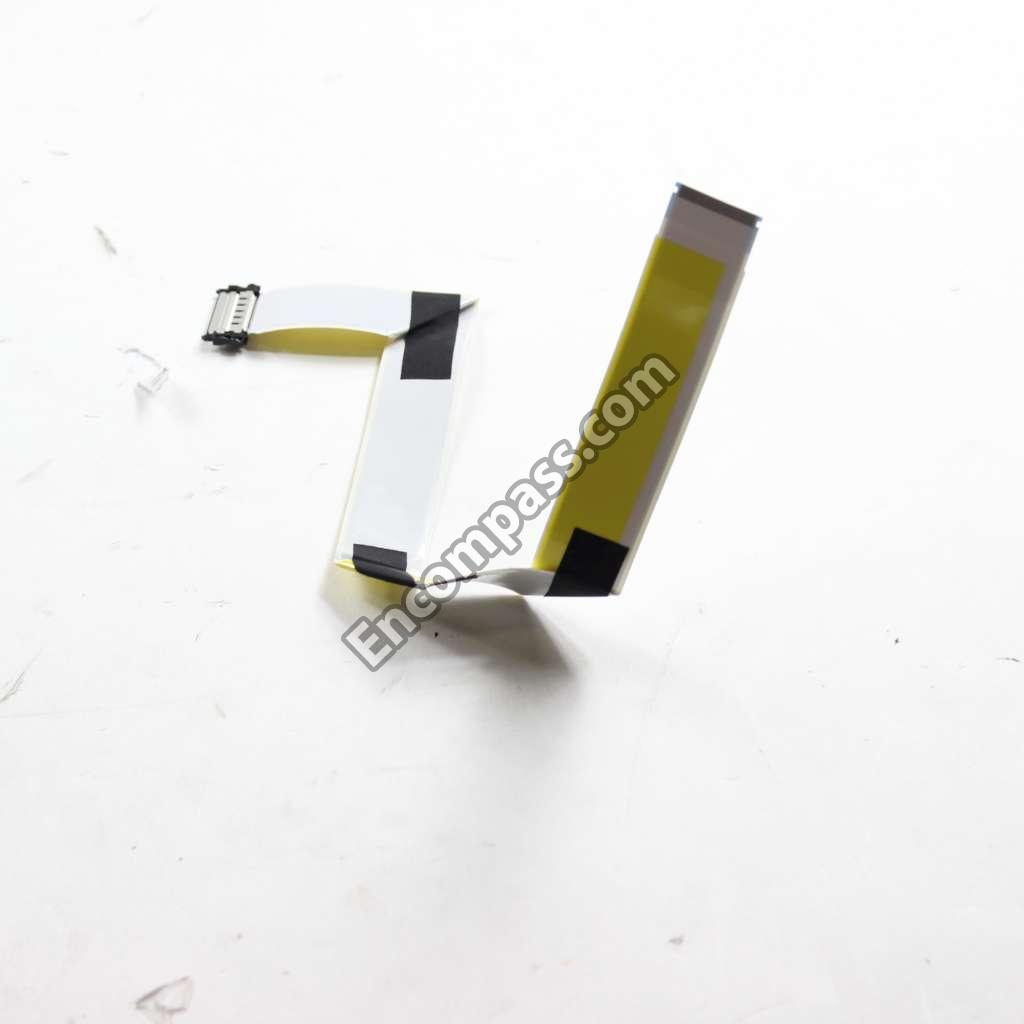

Cables, PCB Cable1-910-110-02
Sony Flexible Flat Cable 24P
Schematic Location: 103

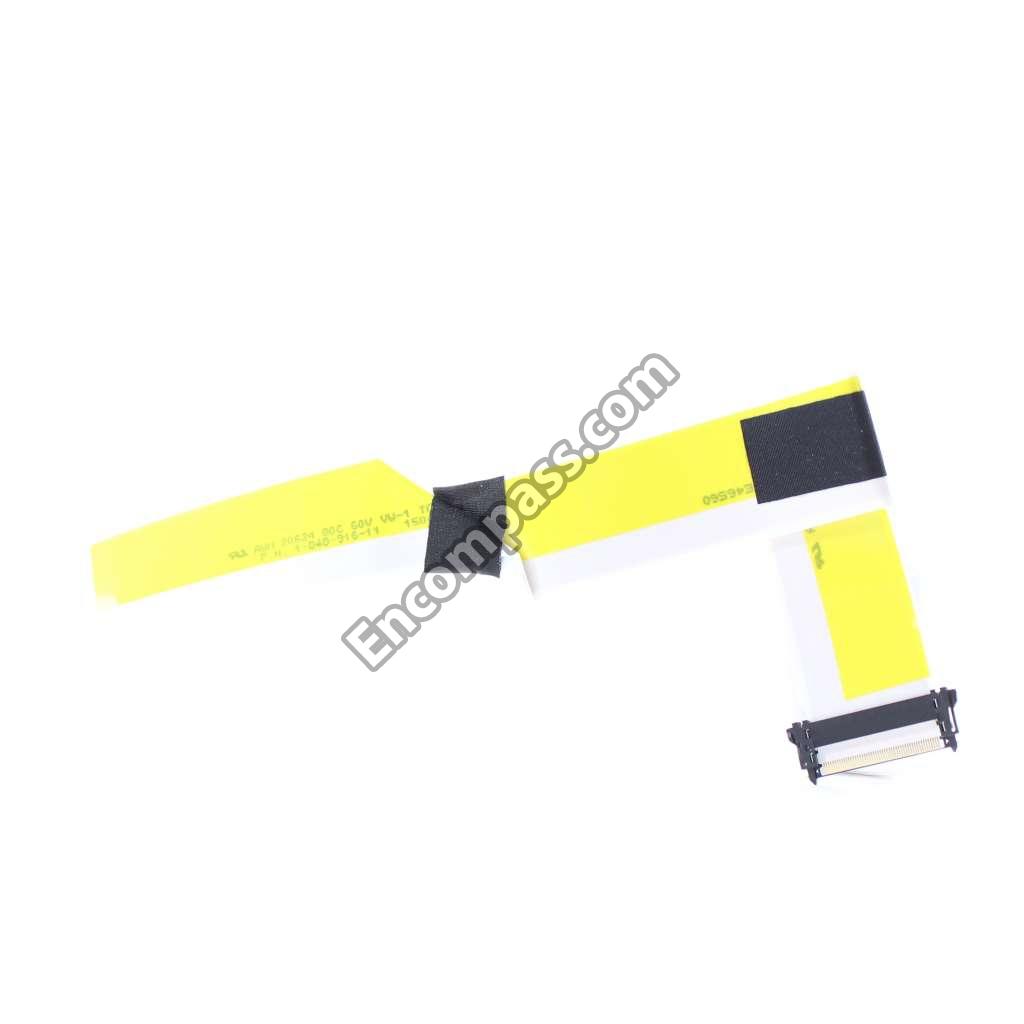

Cables, PCB Cable1-848-918-11
Sony Flexible Flat Cable 41P (Xbs)
Schematic Location: 104
Cables, PCB Cable1-848-916-11
Sony Flexible Flat Cable 51P (Xbs)
Schematic Location: 105
Fuse, Thermal Fuse, Breaker1-523-393-11
Sony Fuse (1608/3.15 A)
Fuse, Thermal Fuse, Breaker1-523-395-11
Sony Fuse (1608/5.0 A)
Fuse, Thermal Fuse, Breaker1-576-850-31
Sony Fuse, Micro (1608)
Converter1-474-613-11
Sony G1a-static Converter(tv) (Power Cba)
Schematic Location: 56
Converter1-474-614-11
Sony G1d-static Converter(tv) (Power Cba)
Schematic Location: 57
Gasket , Seal4-566-117-01
Sony Gasket (Bmf)
Wire1-910-109-99
Sony Harness Assy
Schematic Location: 101
Wire1-910-110-74
Sony Harness Assy (Main)
Schematic Location: 106
Connector1-822-637-31
Sony Hdmi Connector
Connector1-842-680-11
Sony Hdmi Connector
1-843-917-11
Sony Header Assembly 30P
1-818-692-23
Sony Header Assembly 40P
1-842-568-12
Sony Header Assembly For Pwb 8P
4-549-395-01
Sony Heat Sink (Muff C)
4-566-841-01
Sony Heat Sink L(sc)
Schematic Location: 608
4-547-493-01
Sony Heat, Sink (Muff)
Holder4-549-188-01
Sony Holder(hs Muf)
Holder4-548-743-01
Sony Holder, Hs Ws (Muf)
Holder4-549-939-01
Sony Holder, Side Sw (Crn)
Schematic Location: 51
Jack1-842-573-21
Sony Hp Jack
Jack1-842-677-22
Sony Hp Jack
A-2066-088-A
Sony Hsc3_s_m Mount
Schematic Location: 602
IC6-721-997-01
Sony Ic Aoz1236qi-01
IC6-721-990-01
Sony Ic Aoz1267qi
IC6-716-462-01
Sony Ic Bd00ga3wefj-e2
IC6-720-507-01
Sony Ic Bd18ic0whfv-gtr
IC6-718-253-01
Sony Ic Bd2231g-tr
IC6-722-077-01
Sony Ic Bd9b300muv
IC6-721-356-01
Sony Ic Bd9d320efj-e2
IC6-721-097-01
Sony Ic Bu18uc3wg-tr
IC6-722-100-01
Sony Ic H5tq4g63cfr-rdcr
IC6-721-759-01
Sony Ic K4b1g1646g-bcma
IC6-721-472-01
Sony Ic K4b4g1646d-bcma000
Power Control6-705-514-01
Sony Ic Max3222ipwr
IC6-716-843-01
Sony Ic Mm3285fnre
IC6-719-422-01
Sony Ic Mm3411a25nre
IC6-721-935-01
Sony Ic Mt41k256m16ha-107:e
IC6-722-132-01
Sony Ic Mt41k64m16tw-107:j
IC6-722-139-01
Sony Ic Mt5830kehj
IC6-721-758-01
Sony Ic Nt5cb64m16fp-ek
IC6-721-987-11
Sony Ic Pic16f527t-i/ss
IC6-719-288-01
Sony Ic Pst8628ul
IC6-719-313-01
Sony Ic Pst8652ul
IC6-600-880-01
Sony Ic Rs-250
IC6-600-828-01
Sony Ic Rs-270
IC6-722-137-01
Sony Ic Sii9777
Power Control6-718-194-01
Sony Ic Tpa6138a2pwr
IC6-715-164-01
Sony Ic Tps2553dbvr
IC6-715-164-11
Sony Ic Tps2553dbvr
1-469-084-21
Sony Inductor, Ferrite Bead 1000
1-469-080-11
Sony Inductor,ferrite Bead 120 1005
1-469-580-21
Sony Inductor,ferrite Bead 120 1005
Blaster1-845-283-21
Sony Ir Blaster
Label4-563-764-01
Sony Label, Rear Terminal
Schematic Location: 2
Label4-563-765-01
Sony Label, Rear Terminal
Schematic Location: 2
Label4-570-640-01
Sony Label, Side Terminal(w)(crn)
Schematic Location: 1
Label4-570-640-11
Sony Label, Side Terminal(w)(crn)
Schematic Location: 1
Light4-547-390-01
Sony Light, Guide
Light4-564-313-01
Sony Light, Guide
Schematic Location: 603
Jack1-842-576-11
Sony Mini Jack (Ra)
Connector1-842-676-23
Sony Optical Out Connector

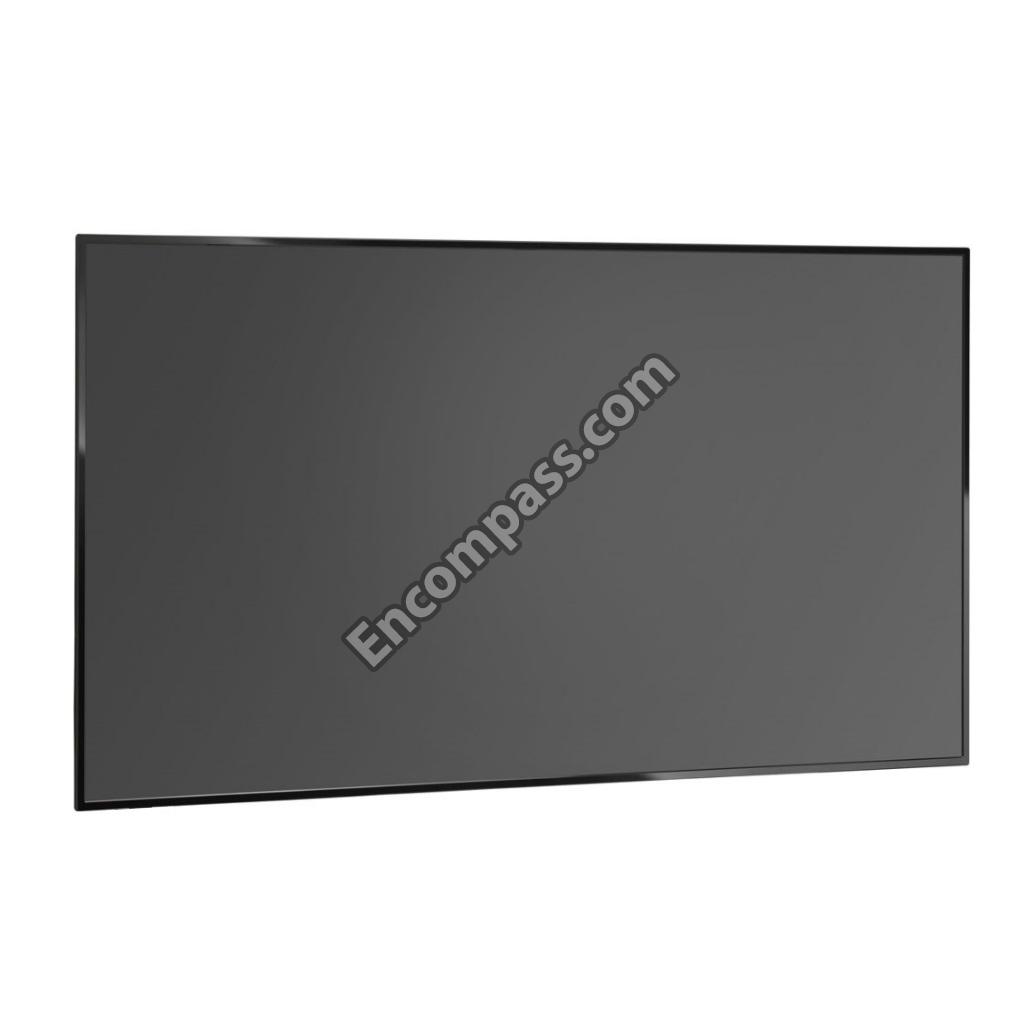

A-2080-280-A
Sony P-mod(yd5s550htg01)(service)
Schematic Location: 62
PanelA-2080-279-A
Sony Panel Service Packing(l Crn)
Panel4-547-389-01
Sony Panel, Ornament
Schematic Location: 604
Panel4-564-312-01
Sony Panel, Ornament
Schematic Location: 604
Jack1-842-665-31
Sony Pin Jack 3P
Jack1-842-663-31
Sony Pin Jack 5P

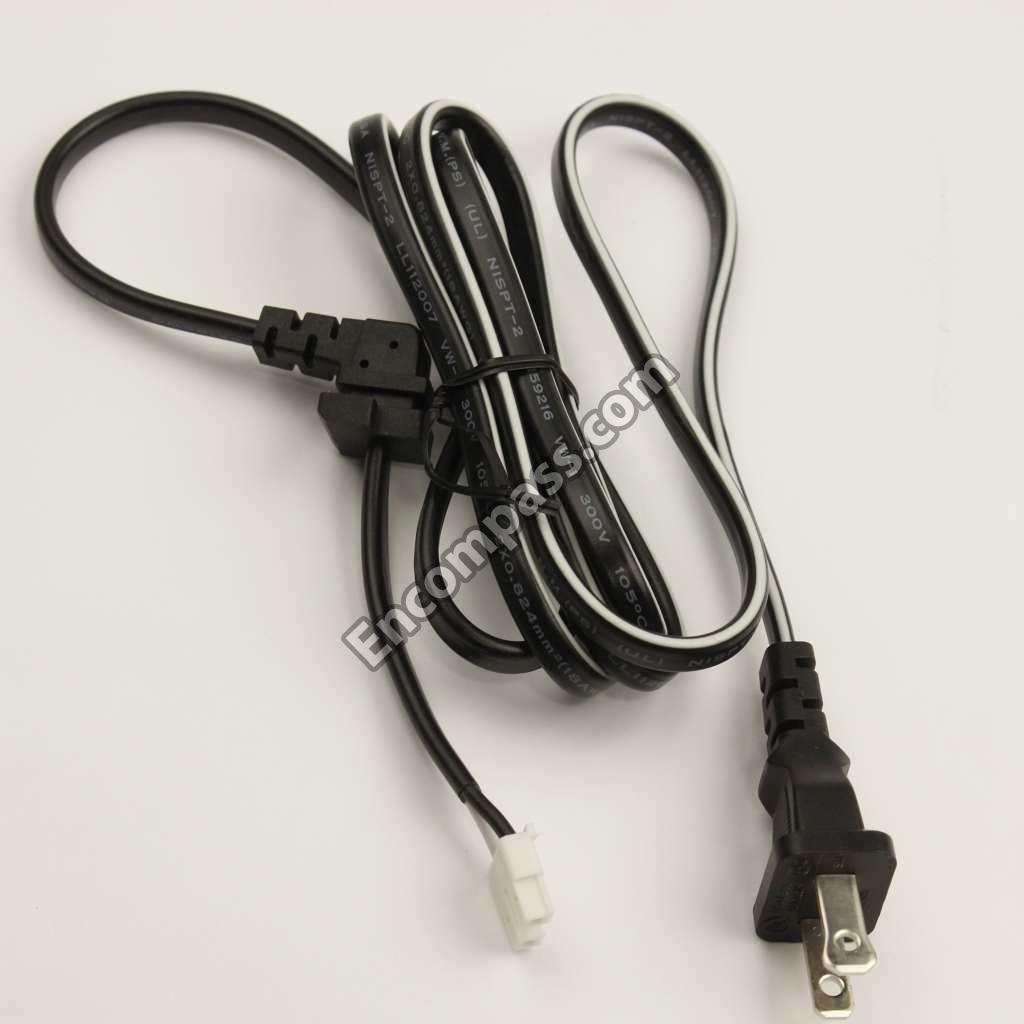

Power Cord1-839-696-21
Sony Power-supply Cord (With Conn.)
Belt, Pulley4-559-547-01
Sony Pulley, Stand (Crn) Out
Transformer1-697-376-11
Sony Pulse Transformer
1-814-887-11
Sony Quarts Crystal Unit
1-814-471-11
Sony Quartz Crystal Unit
1-814-485-11
Sony Quartz Crystal Unit
1-814-864-11
Sony Quartz Crystal Unit (24Mhz)
1-814-865-11
Sony Quartz Crystal Unit (24Mhz)
1-814-687-11
Sony Quartz Crystal Units 37.125Mhz
1-814-788-11
Sony Quartz Crystal Units 37.125Mhz
Cables, PCB Cable1-848-803-11
Sony Rca Conversion Cable
Cables, PCB Cable1-848-907-11
Sony Rca Conversion Cable
Cover,Cap4-549-361-01
Sony Rear Cover (L Crn) A
Schematic Location: 4
Guide4-562-199-32
Sony Reference Guide
Guide4-562-198-12
Sony Reference Guide
Guide4-562-198-11
Sony Reference Guide
Guide4-562-199-31
Sony Reference Guide
Remote Control1-492-949-12
Sony Remote Commander (Rmf-tx100u)
Control1-492-978-21
Sony Remote Commander (Rmt-tx100u)
Triac, Diode or Resistor1-218-981-91
Sony Res, Chip 220K
Triac, Diode or Resistor1-257-350-11
Sony Res, Chip(surge Resistant) 22
1-250-473-11
Sony Res, Metal Film Chip 120(1005)
1-250-523-11
Sony Res, Metal Film Chip 15K(1005)
1-250-525-11
Sony Res, Metal Film Chip 18K(1005)
1-250-526-11
Sony Res, Metal Film Chip 20K(1005)
1-250-479-11
Sony Res, Metal Film Chip 220(1005)
1-250-527-11
Sony Res, Metal Film Chip 22K(1005)
1-250-480-11
Sony Res, Metal Film Chip 240(1005)
1-250-528-11
Sony Res, Metal Film Chip 24K 1/16W
1-250-531-11
Sony Res, Metal Film Chip 33K(1005)
1-250-533-11
Sony Res, Metal Film Chip 39K(1005)
1-250-535-11
Sony Res, Metal Film Chip 47K(1005)
1-250-589-11
Sony Res, Metal Film Chip 75 (1608)
1-250-541-11
Sony Res, Metal Film Chip 82K(1005)
Triac, Diode or Resistor1-257-544-21
Sony Res, Network 100 (1005X4)
Triac, Diode or Resistor1-234-381-21
Sony Res, Network 100Kx4 (1005)
Triac, Diode or Resistor1-234-372-11
Sony Res, Network 100X4 (1005)
Triac, Diode or Resistor1-234-378-21
Sony Res, Network 10Kx4 (1005)
Triac, Diode or Resistor1-234-370-11
Sony Res, Network 22X4 (1005)
Triac, Diode or Resistor1-200-035-21
Sony Res, Network 4.7 (1005X4)
Triac, Diode or Resistor1-234-377-21
Sony Res, Network 4.7Kx4 (1005)
Triac, Diode or Resistor1-257-543-21
Sony Res, Network 47 (1005X4)
Triac, Diode or Resistor1-234-371-11
Sony Res, Network 47X4 (1005)
Triac, Diode or Resistor1-257-551-21
Sony Res, Network 75 (1005X4)
1-250-497-11
Sony Res,metal Film Chip 1.2K(1005)
1-250-499-11
Sony Res,metal Film Chip 1.5K(1005)
1-250-543-11
Sony Res,metal Film Chip 100K(1005)
1-250-547-11
Sony Res,metal Film Chip 150K(1005)
1-250-503-11
Sony Res,metal Film Chip 2.2K(1005)
1-250-505-11
Sony Res,metal Film Chip 2.7K(1005)
1-250-507-11
Sony Res,metal Film Chip 3.3K(1005)
1-250-509-11
Sony Res,metal Film Chip 3.9K(1005)
1-250-555-11
Sony Res,metal Film Chip 330K(1005)
1-250-557-11
Sony Res,metal Film Chip 390K(1005)
1-250-511-11
Sony Res,metal Film Chip 4.7K(1005)
1-250-512-11
Sony Res,metal Film Chip 5.1K(1005)
1-250-515-11
Sony Res,metal Film Chip 6.8K(1005)
1-250-517-11
Sony Res,metal Film Chip 8.2K(1005)
Screw2-990-421-41
Sony Screw (+Psw) (M3x6)
Screw4-452-935-01
Sony Screw , +Pwh M3x6
Screw4-566-072-01
Sony Screw Cap (L Crn)
Schematic Location: 3
Screw2-580-639-01
Sony Screw, +Bvtp 4X12 Type2 It-3
Screw4-256-393-01
Sony Screw, +Psw M3x6 W12
Screw4-256-393-02
Sony Screw, +Psw M3x6 W12
Screw4-256-393-11
Sony Screw, +Psw M3x6 W12
Screw4-256-393-12
Sony Screw, +Psw M3x6 W12
Screw2-580-611-01
Sony Screw, +Psw M6x16
4-562-863-12
Sony Sheet, Inslation(crn Main)
Schematic Location: 58
Led4-562-862-11
Sony Sheet, Inuslation(crn L Led)
Schematic Location: 61
4-568-690-01
Sony Sheet, Thermal (Crn Ddr)
4-549-528-11
Sony Sheet, Thermal (Sc)
4-440-057-01
Sony Sheet, Thermal(ayu2)
4-549-186-01
Sony Sheet, Thermal(bm)
Adhesive7-600-040-44
Sony Silicon Compound 333Cc Gry
Slide2-650-770-21
Sony Slide, Clamp
Schematic Location: 60
1-859-108-51
Sony Sp-box Assy(d20-wf Lch Ch-nd)
1-859-108-61
Sony Sp-box Assy(d20-wf Rch Ch-nd)
1-859-109-11
Sony Sp-box Assy(w20-sq Lch Ch-nd)
Schematic Location: 10
1-859-109-21
Sony Sp-box Assy(w20-sq Rch Ch-nd)
Schematic Location: 9
Screw4-549-975-01
Sony Stand Bag Screw, +Psw M5x10
Screw4-549-977-01
Sony Stand Bag Screw, +Psw M6x32
Cover,Cap4-549-982-01
Sony Stand Cover In (L Crn) A
Stand4-549-990-01
Sony Stand L (L Crn) A
Plate4-549-978-01
Sony Stand Plate In (L Crn) A
Stand4-549-996-01
Sony Stand R (L Crn) A
Stopper3-674-673-22
Sony Stopper (A)
Switch1-493-015-11
Sony Switch Unit (Vm-ww)
Schematic Location: 52
Tape7-600-031-96
Sony Tape (3M 1350Fw-1)15mmx66m Wht
Tape7-632-452-24
Sony Tape (No.303) 18Mmx35m Yel
6-552-424-01
Sony Tr Dra5144e0l
Transistor6-552-444-01
Sony Tr Drc5144e0l
6-552-891-01
Sony Tr Lsar523ubfs8tl
6-552-922-01
Sony Tr Lta014eubfs8tl
6-553-443-01
Sony Tr Pdta114eu
6-553-104-01
Sony Tr Pdta144eu
6-553-105-01
Sony Tr Pdtc144eu
6-552-484-01
Sony Tr Re1c002zpfu7tl
6-550-901-01
Sony Tr Rn1302(te85l.f)
6-552-845-01
Sony Tr Ssm3k121tu,lsoyf
Transistor8-729-030-53
Sony Transistor 2Pc4081r-115
Transistor8-729-230-61
Sony Transistor 2Sa1586-yg
Transistor6-550-978-01
Sony Transistor Rn1902(t5rsony,d,f)
Label3-876-036-71
Sony Uni-label, Blank
8-594-257-00
Sony Universal Sil-tu Sut-ra241zp
Connector1-843-576-11
Sony Usb Connector
Connector1-844-233-11
Sony Usb Connector
Connector1-843-199-11
Sony Usb Connector Type A
1-802-090-21
Sony Varistor, Chip
4-549-961-01
Sony Wall Mount Bar (L Crn) A
Bracket, Flange, Blade4-549-999-01
Sony Wall Mount Bracket (L Crn) A
Module1-458-853-11
Sony Wlan/bt Module(11ac)
Schematic Location: 607		Y
4-559-560-01
Sony Xbr Logo (Crn)

About Sony

Sony is a manufacturer of consumer and professional electronics, gaming, and entertainment equipment. Sony Corporation is a Japanese multinational conglomerate corporation headquartered in Knan, Minato, Tokyo. Its diversified business includes consumer and professional electronics, gaming, and entertainment. Sony is a leading manufacturer of audio, video, communications, and information technology products for the consumer and professional markets. Sony products are reliable and affordable and there are options for any home or budget. They range from computers and professional technology to consumer electronics and home entertainment systems.
