KDL40R510C Sony 40-Inch 1080P 60Hz Led Smart Hdtv Replacement Parts
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|

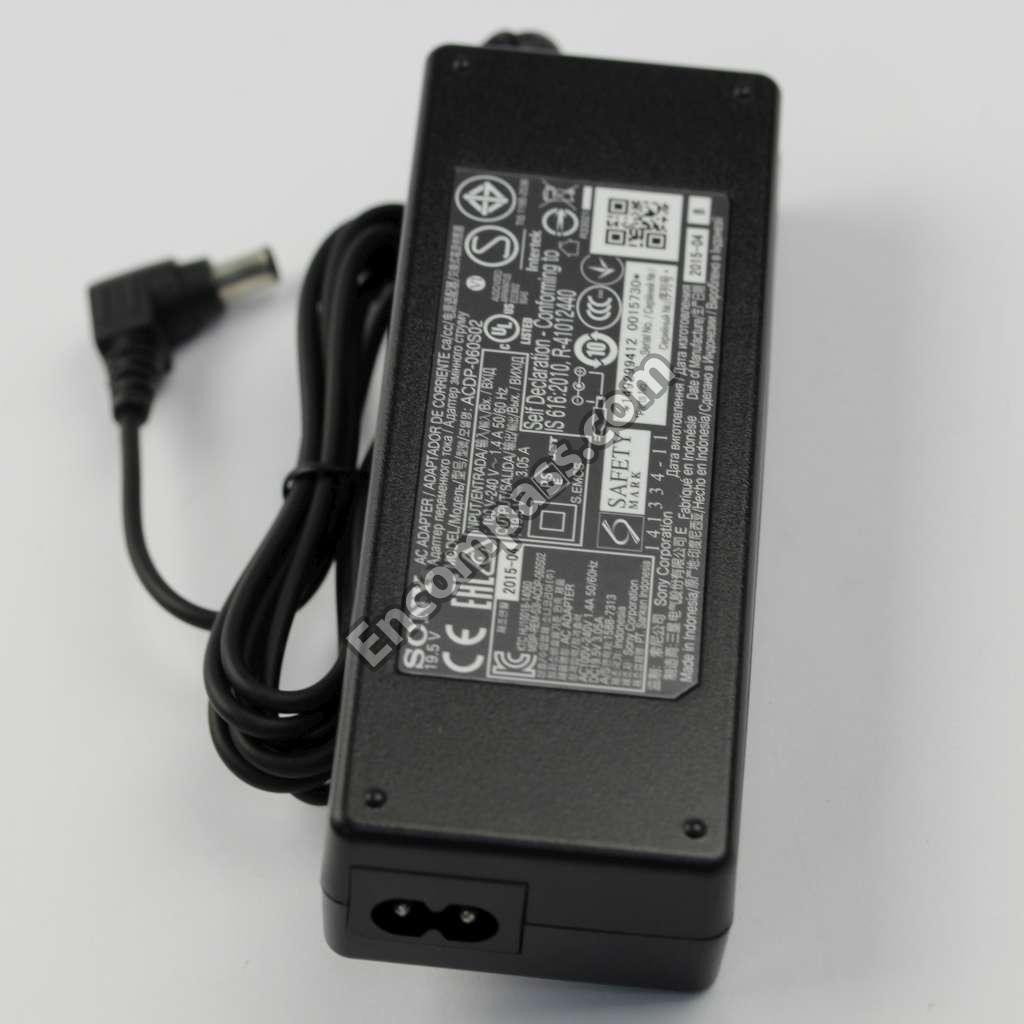

| Adaptor, Chargers | 1-492-994-12 | Sony Ac Adaptor (60W) Schematic Location: 1 | No | |

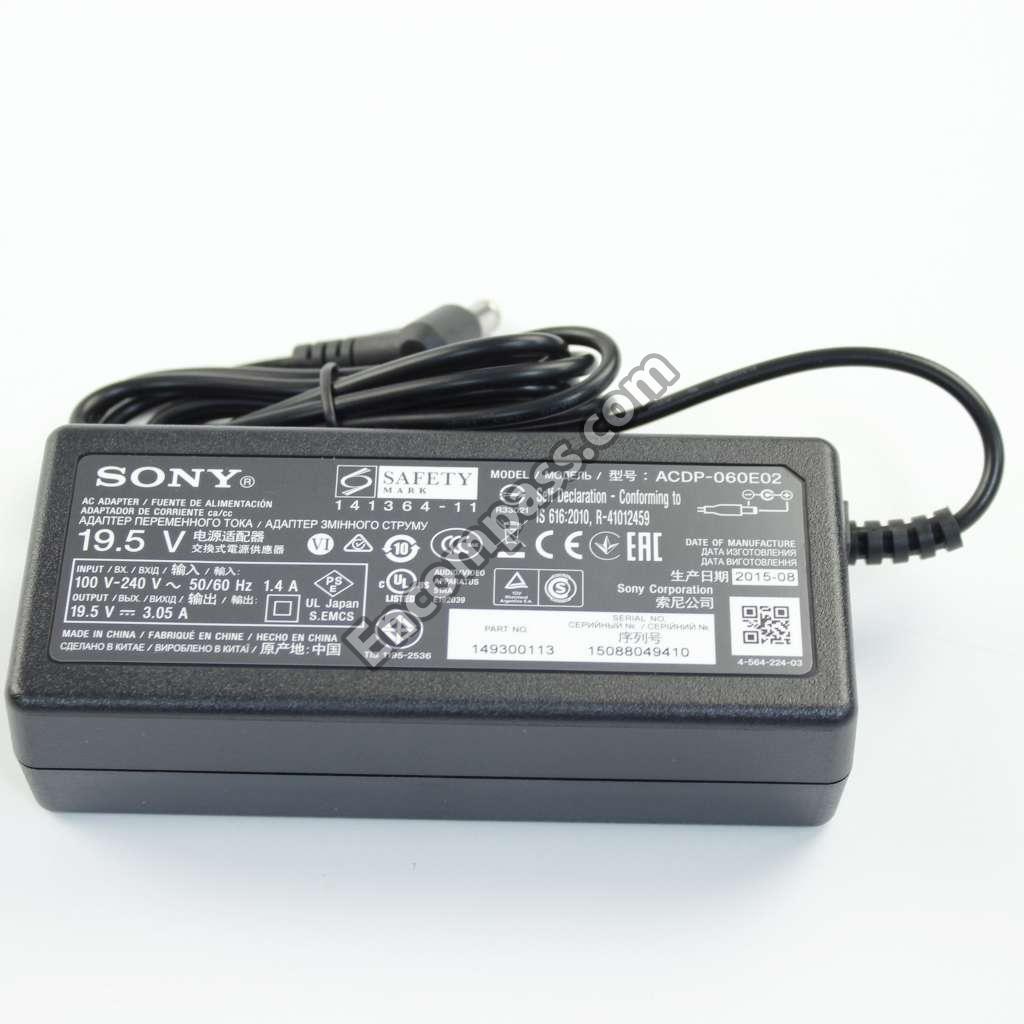

| Adaptor, Chargers | 1-493-001-13 | Sony Ac Adaptor (60W) | No | |
| A-2072-402-A | Sony Accessory Assy U2 Se2n | No | ||
| Screw | 4-558-330-01 | Sony Bag, Screw Assy (Owl) | In Stock In stock 5.95 | |
| 1-481-517-11 | Sony Bead, Ferrite (1608) | Ships in 15 days 5.95 | ||
| Bezel | 4-546-299-02 | Sony Bezel (40 Owl) A | No | |
| Bezel | 4-546-299-01 | Sony Bezel (40 Owl) A | Ships in 15 days 59.95 | |
| Bezel | 4-566-644-01 | Sony Bezel (40 Owl) A | No | |
| Bracket, Flange, Blade | 4-547-839-11 | Sony Bracket, Side (Owl) | No | |
| Bracket, Flange, Blade | 4-565-416-11 | Sony Bracket, Side (Owl) Schematic Location: 8 | In Stock In stock 5.95 | |
| Bracket, Flange, Blade | 4-547-840-01 | Sony Bracket, Under (Owl) | No | |
| Bracket, Flange, Blade | 4-565-427-01 | Sony Bracket, Under (Owl) Schematic Location: 7 | In Stock In stock 5.95 | |
| 1-118-900-11 | Sony Cap, Aluminium Elect 22M 63V | No | ||
| 1-118-911-11 | Sony Cap, Aluminium Elect 22M 63V | No | ||
| 1-118-391-11 | Sony Cap, Ceramic 0.01Mf X7r 1005 | Y | Ships in 14 days 1.95 | |
| 1-118-388-11 | Sony Cap, Ceramic 0.047Mf X7r 1005 | Ships in 15 days 0.01 | ||
| 1-118-036-11 | Sony Cap, Ceramic 0.1Mf X5r (1608) | Ships in 15 days 0.01 | ||
| 1-118-066-11 | Sony Cap, Ceramic 0.1Mf X7r 1608 | Ships in 15 days 5.95 | ||
| 1-116-745-11 | Sony Cap, Ceramic 0.22Mf X6s 1005 | Ships in 15 days 5.95 | ||
| 1-120-084-11 | Sony Cap, Ceramic 0.22Mf X7r 2012 | No | ||
| 1-116-739-11 | Sony Cap, Ceramic 0.47Mf X7r 2012 | Ships in 15 days 0.01 | ||
| 1-118-403-11 | Sony Cap, Ceramic 1000Pf X7r 1005 | No | ||
| 1-118-965-11 | Sony Cap, Ceramic 1000Pf X7r 3216 | No | ||
| 1-116-998-11 | Sony Cap, Ceramic 10Mf 3216 25V | Ships in 15 days 0.01 | ||
| 1-116-874-11 | Sony Cap, Ceramic 10Mf X6s 3216 | Ships in 15 days 0.01 | ||
| 1-118-401-11 | Sony Cap, Ceramic 1500Pf 50V | Ships in 15 days 0.01 | ||
| 1-116-738-11 | Sony Cap, Ceramic 1Mf X6s 1005 | Ships in 15 days 57.95 | ||
| 1-116-736-11 | Sony Cap, Ceramic 1Mf X7r 1608 | Ships in 15 days 0.01 | ||
| 1-116-733-11 | Sony Cap, Ceramic 1Mf X7r 2012 | Ships in 15 days 0.01 | ||
| 1-116-732-11 | Sony Cap, Ceramic 2.2Mf X5r 1005 | Ships in 15 days 5.95 | ||
| 1-118-955-11 | Sony Cap, Ceramic 22Mf X6s (3216) | Ships in 15 days 0.01 | ||
| 1-116-714-11 | Sony Cap, Ceramic 22Mf X6s 2012 | Ships in 15 days 57.95 | ||
| 1-116-712-11 | Sony Cap, Ceramic 22Mf X6s 3216 | Ships in 15 days 0.01 | ||
| 1-118-397-11 | Sony Cap, Ceramic 3300Pf X7r 1005 | Ships in 15 days 0.01 | ||
| 1-116-722-11 | Sony Cap, Ceramic 4.7Mf X6s 2012 | Ships in 15 days 0.01 | ||
| 1-116-723-11 | Sony Cap, Ceramic 4.7Mf X7r 2012 | Ships in 15 days 5.95 | ||
| 1-116-708-11 | Sony Cap, Ceramic 47Mf X6s 3216 | Ships in 15 days 57.95 | ||
| Capacitor | 1-118-903-11 | Sony Cap,aluminium ** Elect 56M 25V | Ships in 15 days 0.01 | |
| 1-118-390-11 | Sony Cap,cer 0.015Mf X7r 1005 25V | Ships in 15 days 0.01 | ||
| 1-118-389-11 | Sony Cap,cer 0.022Mf X7r 1005 25V | No | ||
| 1-118-360-11 | Sony Cap,cer 0.1Mf X7r 1608 25V | Ships in 15 days 5.95 | ||
| Card | 1-458-751-21 | Sony Card, Wireless Lan Schematic Location: 12 | Ships in 15 days 46.95 | |
| 1-802-251-21 | Sony Chip Varistor | Ships in 15 days 5.95 | ||
| 1-812-064-11 | Sony Chip Varistor | No | ||
| Coil | 1-457-874-11 | Sony Choke Coil 10Uh | Ships in 15 days 5.95 | |
| Coil | 1-457-871-11 | Sony Choke Coil 2.2Uh | Ships in 15 days 5.95 | |
| Clamp | 4-262-708-03 | Sony Clamper, Cable | No | |
| Coil | 1-460-615-11 | Sony Coil, Choke 10.0Uh | Ships in 15 days 0.01 | |
| Coil | 1-460-509-11 | Sony Common Mode Choke Coil | Ships in 15 days 0.01 | |
| Coil | 1-460-611-11 | Sony Common Mode Choke Coil | Ships in 15 days 0.01 | |
| Coil | 1-460-649-11 | Sony Common Mode Choke Coil | Ships in 15 days 0.01 | |
| Coil | 1-460-795-11 | Sony Common Mode Choke Coils | No | |
| Base | A-2066-942-C | Sony Compl Svc Ba_se2n (Main Cba)_uc_40f | Y | In Stock In stock 40.95 |
| Triac, Diode or Resistor | 1-216-295-00 | Sony Conductor, Chip (2012) | Ships in 15 days 5.95 | |
| 1-257-578-21 | Sony Conductor, Network (1005X4) | Ships in 15 days 0.01 | ||
| Connector | 1-910-805-29 | Sony Connector Assy 10P Schematic Location: 81 | Ships in 15 days 9.95 | |

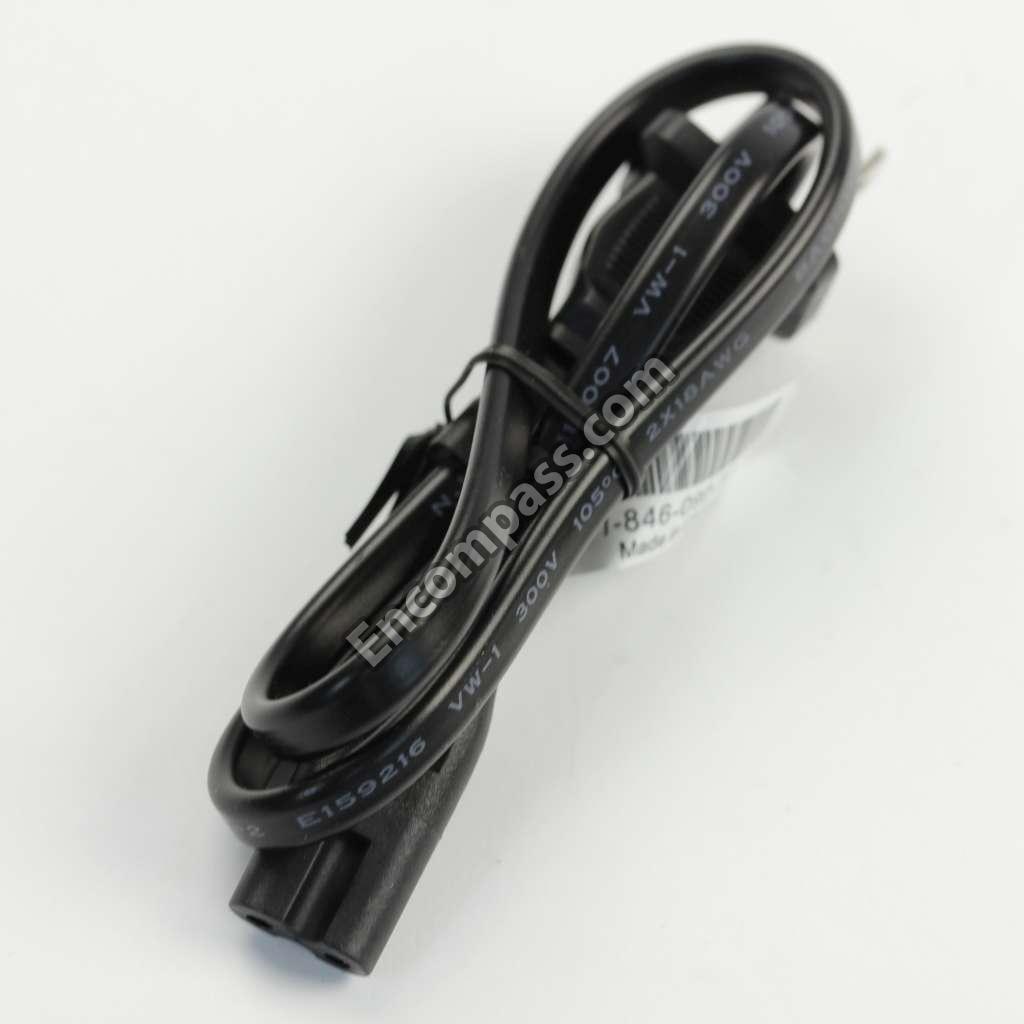

| Power Cord | 1-846-090-32 | Sony Cord Set, Power-supply Schematic Location: 2 | No | |
| 1-814-868-11 | Sony Crystal Unit, Quartz (27Mhz) | No | ||
| Jack | 1-843-777-12 | Sony Dc Jack | Ships in 15 days 0.01 | |
| 6-504-090-02 | Sony Di 12-22/G6r8c-a30/3c | No | ||
| 6-503-009-01 | Sony Di Dz2j036m0l | Ships in 15 days 5.95 | ||
| Diode | 6-502-965-01 | Sony Di Dz2j05600l | Ships in 15 days 5.95 | |
| Diode | 6-502-966-01 | Sony Di Dz2j056m0l | Ships in 15 days 8.95 | |
| Diode | 6-503-030-01 | Sony Di Dz2j160m0l | Ships in 15 days 5.95 | |
| 6-503-037-01 | Sony Di Dz2j24000l | Ships in 15 days 5.95 | ||
| 6-503-095-01 | Sony Di Dz2s03900k8 | Ships in 15 days 0.01 | ||
| 6-504-138-01 | Sony Di Kdzvtr24b | No | ||
| 6-504-168-01 | Sony Di Mm5z3v6t1g | No | ||
| 6-504-083-01 | Sony Di Mmsz4678t1g | No | ||
| 6-503-579-01 | Sony Di Rb521sm-30t2r | Ships in 15 days 5.95 | ||
| 1-481-912-21 | Sony Emi Ferrite (Smd) (1005) | Ships in 15 days 5.95 | ||
| Connector | 1-843-664-11 | Sony Ethernet Connector | Ships in 15 days 0.01 | |
| Connector | 1-843-965-11 | Sony Ethernet Connector | Ships in 15 days 0.01 | |
| Connector | 1-842-546-21 | Sony Ffc/fpc Connector (Non Zif)51p | Ships in 15 days 6.95 | |
| Cables, PCB Cable | 1-848-842-12 | Sony Flexible Flat Cable 51P | No | |

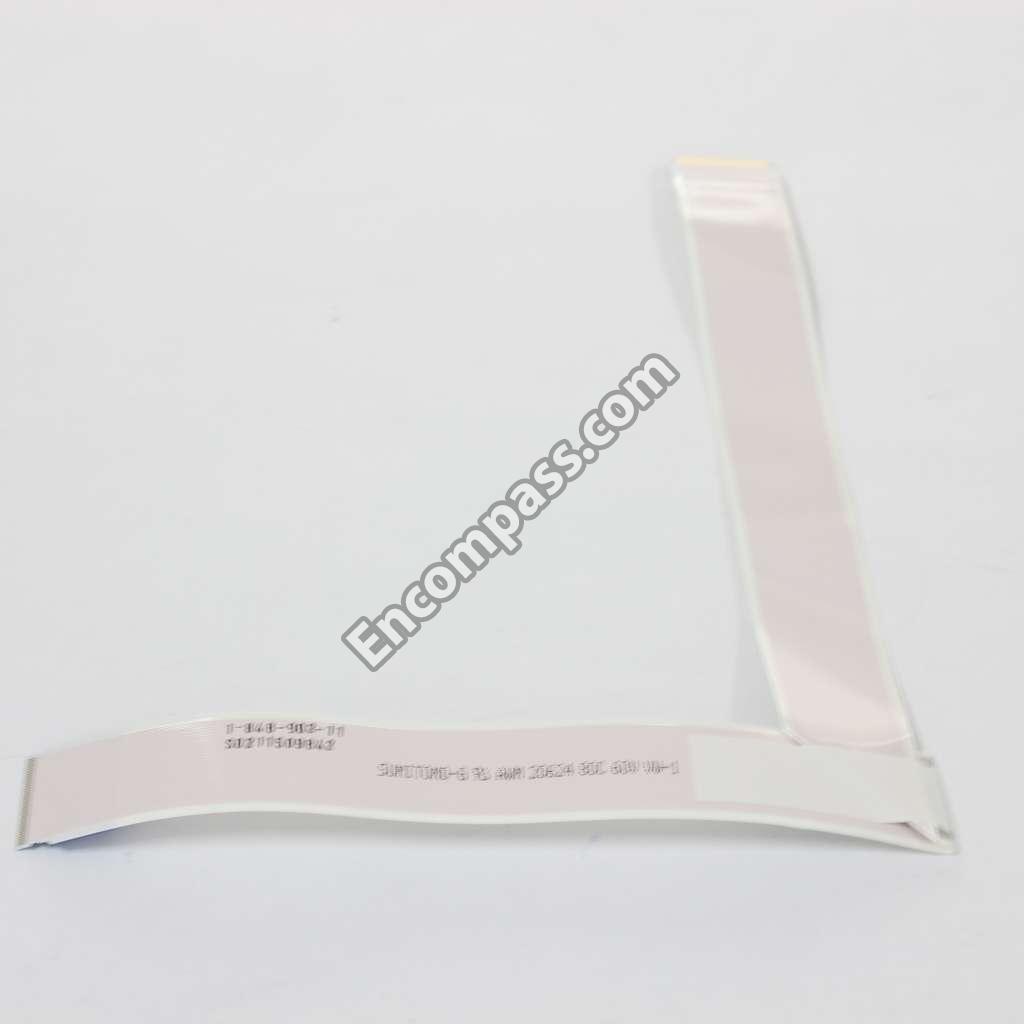

| Cables, PCB Cable | 1-848-902-11 | Sony Flexible Flat Cable 51P Schematic Location: 84 | Ships in 15 days 21.95 | |
| Cables, PCB Cable | 1-848-836-11 | Sony Flexible Flat Cable 5P | No | |
| Cables, PCB Cable | 1-848-839-11 | Sony Flexible Flat Cable 5P Schematic Location: 83 | Ships in 15 days 6.95 | |
| Cables, PCB Cable | 1-848-839-12 | Sony Flexible Flat Cable 5P | No | |
| Fuse, Thermal Fuse, Breaker | 1-523-337-11 | Sony Fuse (1608/5.0 A) | No | |
| Gasket , Seal | 4-569-045-01 | Sony Gasket (5X5 (10)), Soft | No | |
| Wire | 1-910-805-25 | Sony Harness Assy Schematic Location: 82 | Ships in 15 days 11.95 | |
| Connector | 1-822-637-31 | Sony Hdmi Connector | In Stock In stock 7.95 | |
| Connector | 1-842-680-11 | Sony Hdmi Connector | Ships in 15 days 6.95 | |
| Connector | 1-843-207-11 | Sony Hdmi St Connector | Ships in 15 days 0.01 | |
| 1-820-162-12 | Sony Header Assembly 30P | No | ||
| 1-842-566-12 | Sony Header Assembly For Pwb 4P | No | ||
| 1-819-466-11 | Sony Header Assembly For Pwb 6P | Ships in 15 days 12.95 | ||
| 4-566-006-01 | Sony Heat Spreader (40) | No | ||
| A-2079-610-A | Sony Heat Spreader (40) Assy | No | ||
| A-2066-599-A | Sony Hkk(mount) Schematic Location: 13 | In Stock In stock 5.95 | ||
| IC | 6-722-061-01 | Sony Ic Bd15ic0whfv-gtr | No | |
| IC | 6-721-989-01 | Sony Ic Bd28620muv-e2 | No | |
| IC | 6-718-839-01 | Sony Ic Bd9397efv-ge2 | Ships in 15 days 0.01 | |
| IC | 6-721-965-01 | Sony Ic Gl850g-ogy34 | No | |
| IC | 6-720-716-01 | Sony Ic Mc74vhc1g08dft2g | Ships in 15 days 0.01 | |
| IC | 6-721-992-01 | Sony Ic Mt5565hqvg | No | |
| IC | 6-721-962-01 | Sony Ic Mx30lf4g28ab-xki | No | |
| IC | 6-721-964-01 | Sony Ic Nlas7242mutbg | No | |
| IC | 6-721-397-01 | Sony Ic Pca9517admr2g | No | |
| IC | 6-600-880-01 | Sony Ic Rs-250 | Ships in 15 days 0.01 | |
| IC | 6-722-059-01 | Sony Ic Rt7264ezsp | No | |
| IC | 6-718-833-01 | Sony Ic Rt8292ahzsp | Ships in 15 days 0.01 | |
| IC | 6-720-715-01 | Sony Ic Rt8295ahzsp | Ships in 15 days 0.01 | |
| IC | 6-721-966-01 | Sony Ic S34ml04g200bhi00# | No | |
| IC | 6-721-931-01 | Sony Ic Tc58nvg2s0hbai4jd0 | No | |
| IC | 6-706-487-01 | Sony Ic Tc7sh08fu(t5rsoyjf) | Ships in 30 days 4.95 | |
| IC | 6-715-039-01 | Sony Ic Tc7sz08fu,rsonyj | Ships in 15 days 29.95 | |
| IC | 6-721-963-01 | Sony Ic Tc7usb42mu,lf(s | No | |
| Power Control | 6-718-194-01 | Sony Ic Tpa6138a2pwr | In Stock In stock 1.95 | |
| IC | 6-718-256-01 | Sony Ic Tps 2051C | Ships in 15 days 0.01 | |
| 1-481-290-21 | Sony Inductor 47Uh | No | ||
| 1-469-084-21 | Sony Inductor, Ferrite Bead 1000 | Ships in 9 days 5.95 | ||
| 1-469-080-11 | Sony Inductor,ferrite Bead 120 1005 | Ships in 15 days 5.95 | ||
| Label | 4-549-627-01 | Sony Label, Under Terminal Schematic Location: 4 | No | |
| Light | 4-566-498-02 | Sony Light, Guide (Owl) | No | |
| 1-812-116-11 | Sony Liquid Crystal Element(s40n01) | No | ||
| 1-812-116-31 | Sony Liquid Crystal Element(s40n01) | No | ||
| Speaker | 1-859-099-11 | Sony Loudspeaker Schematic Location: 11 | Ships in 15 days 18.95 | |
| 4-562-279-11 | Sony Manual, Instruction | No | ||
| Fuse, Thermal Fuse, Breaker | 1-523-144-31 | Sony Micro Fuse-links (1608 Type) | Ships in 15 days 5.95 | |
| 4-546-282-01 | Sony Middle Chassis B (40) A | No | ||
| 4-546-283-01 | Sony Middle Chassis L (40) A | No | ||
| 4-546-284-01 | Sony Middle Chassis R (40) A | No | ||
| 4-546-281-01 | Sony Middle Chassis T (40) A | No | ||
| Connector | 1-842-676-23 | Sony Optical Out Connector | Ships in 15 days 15.95 | |
| A-2071-674-A | Sony Packing Com 40 U2 Se2n Wm_d | No | ||
| Cover,Cap | 4-546-312-01 | Sony Panel Rear Cover (40 Owl) | No | |
| Cover,Cap | 4-559-106-01 | Sony Panel Rear Cover (40 Owl) | No | |
| Panel | 4-548-878-01 | Sony Panel, Ornamental (Owl) | No | |
| Panel | 4-566-496-01 | Sony Panel, Ornamental (Owl) Schematic Location: 3 | No | |
| Jack | 1-843-673-11 | Sony Pin Jack 5P | Ships in 15 days 0.01 | |
| 4-573-960-01 | Sony Polarizer F/cf | Ships in 15 days 77.95 | ||
| 4-573-961-01 | Sony Polarizer R/tft | Ships in 15 days 61.95 | ||
| Transformer | 1-697-376-11 | Sony Pulse Transformer | No | |
| 1-814-874-11 | Sony Quartz Crystal Unit (12Mhz) | No | ||
| 1-814-625-12 | Sony Quartz Crystal Unit (27Mhz) | No | ||
| Cover,Cap | 4-566-593-01 | Sony Rear Cover (40Owl) A Schematic Location: 5 | Ships in 15 days 33.95 | |
| Remote Control | 1-492-980-11 | Sony Remote Commander (Rmt-tx102u) | No | |
| 1-257-644-11 | Sony Res, Chip 4.7 (2012) | No | ||
| 1-248-342-11 | Sony Res, Metal Film 0.33 (2012) | Ships in 15 days 0.01 | ||
| 1-248-326-11 | Sony Res, Metal Film 1.8 (1608) | No | ||
| 1-248-333-11 | Sony Res, Metal Film 6.8 (1608) | No | ||
| 1-250-521-11 | Sony Res, Metal Film Chip 12K(1005) | Ships in 15 days 5.95 | ||
| 1-250-523-11 | Sony Res, Metal Film Chip 15K(1005) | No | ||
| 1-250-453-11 | Sony Res, Metal Film Chip 18 (1005) | Ships in 15 days 0.01 | ||
| 1-250-526-11 | Sony Res, Metal Film Chip 20K(1005) | Ships in 15 days 0.01 | ||
| 1-250-527-11 | Sony Res, Metal Film Chip 22K(1005) | Ships in 15 days 5.95 | ||
| 1-250-480-11 | Sony Res, Metal Film Chip 240(1005) | Ships in 15 days 0.01 | ||
| 1-250-528-11 | Sony Res, Metal Film Chip 24K 1/16W | Ships in 15 days 5.95 | ||
| 1-250-531-11 | Sony Res, Metal Film Chip 33K(1005) | Ships in 15 days 5.95 | ||
| 1-250-535-11 | Sony Res, Metal Film Chip 47K(1005) | Ships in 30 days 4.95 | ||
| 1-250-465-11 | Sony Res, Metal Film Chip 56 (1005) | Ships in 15 days 5.95 | ||
| 1-250-537-11 | Sony Res, Metal Film Chip 56K(1005) | Ships in 30 days 1.95 | ||
| 1-250-467-11 | Sony Res, Metal Film Chip 68 (1005) | Ships in 15 days 0.01 | ||
| 1-250-491-11 | Sony Res, Metal Film Chip 680(1005) | Ships in 15 days 5.95 | ||
| 1-250-541-11 | Sony Res, Metal Film Chip 82K(1005) | In Stock In stock 5.95 | ||
| Triac, Diode or Resistor | 1-257-544-21 | Sony Res, Network 100 (1005X4) | Ships in 15 days 0.01 | |
| Triac, Diode or Resistor | 1-234-372-11 | Sony Res, Network 100X4 (1005) | Y | Ships in 15 days 3.43 |
| Triac, Diode or Resistor | 1-234-378-21 | Sony Res, Network 10Kx4 (1005) | Ships in 9 days 6.95 | |
| Triac, Diode or Resistor | 1-257-609-21 | Sony Res, Network 2.2 (1005X4) | No | |
| Triac, Diode or Resistor | 1-257-558-21 | Sony Res, Network 4.7K (1005X4) | Ships in 15 days 0.01 | |
| Triac, Diode or Resistor | 1-234-377-21 | Sony Res, Network 4.7Kx4 (1005) | Ships in 15 days 5.95 | |
| Triac, Diode or Resistor | 1-257-543-21 | Sony Res, Network 47 (1005X4) | Ships in 15 days 0.01 | |
| Triac, Diode or Resistor | 1-257-548-21 | Sony Res, Network 47K (1005X4) | Ships in 15 days 0.01 | |
| Triac, Diode or Resistor | 1-234-371-11 | Sony Res, Network 47X4 (1005) | Ships in 15 days 5.95 | |
| Triac, Diode or Resistor | 1-257-551-21 | Sony Res, Network 75 (1005X4) | Ships in 15 days 0.01 | |
| 1-250-497-11 | Sony Res,metal Film Chip 1.2K(1005) | Ships in 15 days 5.95 | ||
| 1-250-499-11 | Sony Res,metal Film Chip 1.5K(1005) | Ships in 15 days 0.01 | ||
| 1-250-543-11 | Sony Res,metal Film Chip 100K(1005) | Ships in 30 days 1.95 | ||
| 1-250-545-11 | Sony Res,metal Film Chip 120K(1005) | Ships in 15 days 0.01 | ||
| 1-250-549-11 | Sony Res,metal Film Chip 180K(1005) | Ships in 15 days 0.01 | ||
| 1-250-505-11 | Sony Res,metal Film Chip 2.7K(1005) | Ships in 15 days 0.01 | ||
| 1-250-551-11 | Sony Res,metal Film Chip 220K(1005) | Ships in 30 days 4.95 | ||
| 1-250-555-11 | Sony Res,metal Film Chip 330K(1005) | Ships in 15 days 9.95 | ||
| 1-250-511-11 | Sony Res,metal Film Chip 4.7K(1005) | Ships in 30 days 1.95 | ||
| 1-250-515-11 | Sony Res,metal Film Chip 6.8K(1005) | Ships in 15 days 9.95 | ||
| 1-250-517-11 | Sony Res,metal Film Chip 8.2K(1005) | Ships in 15 days 0.01 | ||
| Screw | 2-990-421-41 | Sony Screw (+Psw) (M3x6) | Ships in 15 days 5.95 | |
| Screw | 4-472-518-01 | Sony Screw, +Psw M3x6 | Ships in 15 days 0.01 | |
| Screw | 4-167-019-22 | Sony Screw, +Psw M3x8 | No | |
| Screw | 2-580-602-01 | Sony Screw, +Psw M4x12 | Y | In Stock In stock 4.95 |
| 4-564-765-01 | Sony Sheet,thermal(5595) Schematic Location: 10 | Ships in 15 days 5.95 | ||
| Circuit Board | 1-895-828-11 | Sony Source Control Mt Board | No | |
| Circuit Board | 1-895-824-11 | Sony Source Driver Ic Mt Board | Ships in 15 days 10.95 | |
| Base | 4-566-395-22 | Sony Stand Base Assy M (Owl) | No | |
| Base | 4-558-335-22 | Sony Stand Base Assy M (Owl) | No | |
| Base | 4-566-395-23 | Sony Stand Base Assy M (Owl) | No | |
| Switch | 1-492-517-12 | Sony Switch Unit | No | |
| Switch | 1-492-517-21 | Sony Switch Unit Schematic Location: 6 | Ships in 15 days 6.95 | |
| Tape | 7-600-031-96 | Sony Tape (3M 1350Fw-1)15mmx66m Wht | No | |
| Tape | 4-569-140-11 | Sony Tape, Hs | No | |
| 6-553-593-01 | Sony Tr Aod2910 | No | ||
| 6-552-424-01 | Sony Tr Dra5144e0l | Ships in 15 days 9.95 | ||
| Transistor | 6-552-444-01 | Sony Tr Drc5144e0l | Ships in 15 days 5.95 | |
| 6-553-610-01 | Sony Tr Nx2301p | No | ||
| 6-553-104-01 | Sony Tr Pdta144eu | Ships in 15 days 0.01 | ||
| 6-553-105-01 | Sony Tr Pdtc144eu | Ships in 15 days 0.01 | ||
| 6-550-901-01 | Sony Tr Rn1302(te85l.f) | Ships in 15 days 0.01 | ||
| 6-553-314-01 | Sony Tr Ssm3j327r | Ships in 15 days 0.01 | ||
| 6-553-411-01 | Sony Tr Tpc8129,lsonyq | Ships in 15 days 0.01 | ||
| Transistor | 8-729-030-53 | Sony Transistor 2Pc4081r-115 | Ships in 15 days 5.95 | |
| Transistor | 8-729-230-63 | Sony Transistor 2Sc4116-yg | Ships in 15 days 5.95 | |
| Transistor | 8-729-013-22 | Sony Transistor Hn1a01fu-te85r | Ships in 15 days 5.95 | |
| Transistor | 8-729-427-72 | Sony Transistor Hn1c01fu-te85r | No | |
| Transistor | 6-550-914-01 | Sony Transistor Rn2304(te85l.f) | Ships in 15 days 5.95 | |
| Label | 3-876-036-71 | Sony Uni-label, Blank | Ships in 15 days 5.95 | |
| Jack | 1-843-683-11 | Sony Unified Polarity Type Dc Jack | Ships in 15 days 0.01 | |
| Connector | 1-842-667-12 | Sony Usb Connector | Ships in 15 days 109.95 | |
| Connector | 1-842-675-13 | Sony Usb Connector | Ships in 15 days 5.95 | |
| Connector | 1-843-576-11 | Sony Usb Connector | Ships in 15 days 5.95 | |
| Connector | 1-843-199-11 | Sony Usb Connector Type A | Ships in 15 days 5.95 | |
| 1-802-090-21 | Sony Varistor, Chip | In Stock In stock 5.95 | ||
| 1-813-877-11 | Sony Vibrator, Crystal 12Mhz | Ships in 15 days 8.95 |
