PMWEX1R Sony Xdcam Ex Full Hd Camcorder Replacement Parts

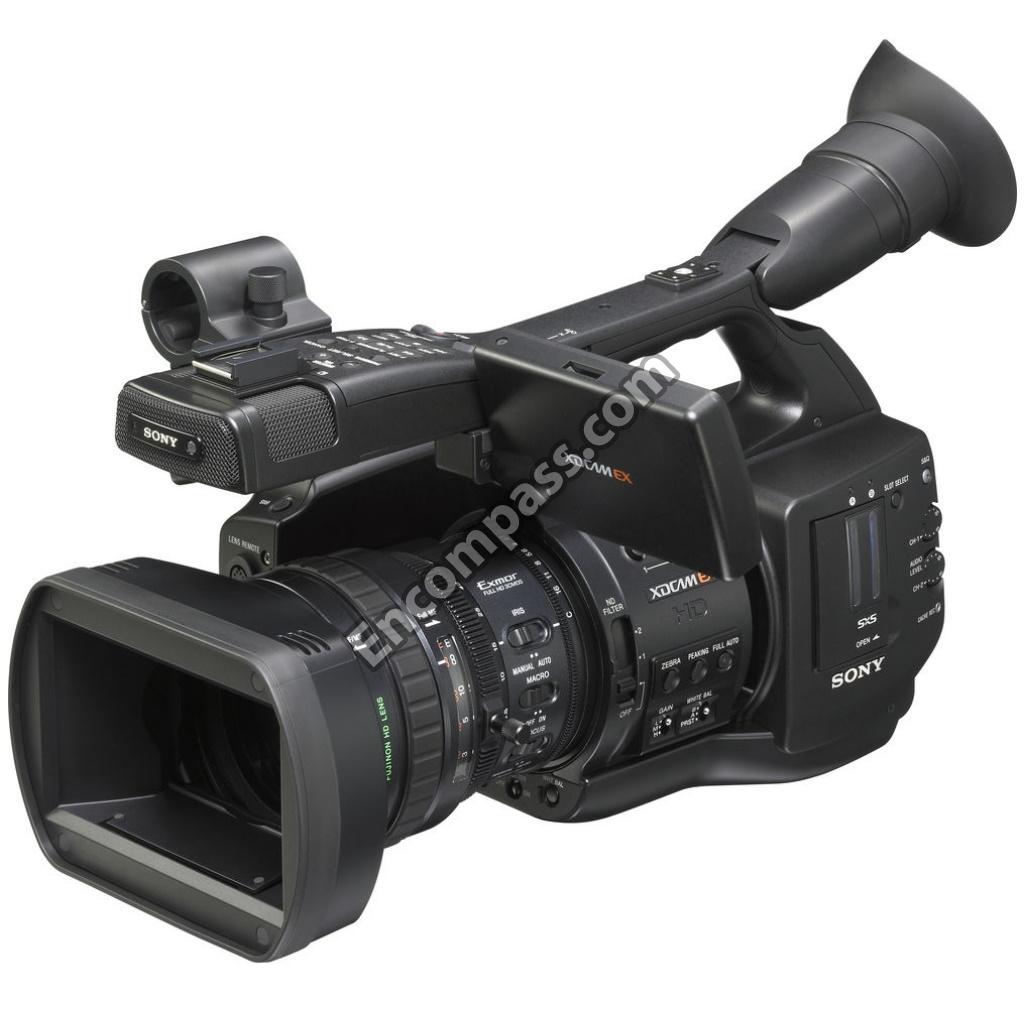

view enlarged image in modal windowPMWEX1R Xdcam Ex Full Hd Camcorder

Manufacturer
Sony Replacement Parts

Model Number
PMWEX1R

Description
Xdcam Ex Full Hd Camcorder

  No Right to Repair manual available. Please contact customer support for assistance.

Parts List

CategoryPart NumberDescriptionDemand
Power Cord1-831-553-11
Sony Cord Connection (Av MultipY
Led3-868-992-01
Sony (Assign)cushionled
Screw3-694-181-03
Sony Arock Precision +P2.6 Type 1Y
Cover,CapX-2515-725-1
Sony Assy Handle Cover Upper
BatteryA-1748-437-B
Sony Battery Case Assy
Tape4-166-655-02
Sony Battery Case Conductive Tape
Gasket , Seal4-166-648-01
Sony Battery Case Gasket
Battery1-528-174-71
Sony Battery, Lithium (Cr2032 Type)
Battery1-528-174-33
Sony Battery,lithium Cr2032
Battery1-528-174-34
Sony Battery,lithium Cr2032
Bezel3-276-871-01
Sony Bezel Lcd
J-6325-110-A
Sony Bit For Torque Driver (M1.4)Y
J-6325-380-A
Sony Bit For Torque Driver (M2)Y
1-480-457-21
Sony Block, Au Volume
Cover,Cap3-278-727-01
Sony Bnc Cover
Plate4-164-602-01
Sony Bottom Plate
CaseX-2187-376-1
Sony Botton Casel Assy
Bracket, Flange, Blade4-164-730-01
Sony Bracket Dc Jack
Knob, Dial, Button4-164-877-01
Sony Button (Nd)
Knob, Dial, Button4-164-732-02
Sony Button (Rear) Push
Knob, Dial, Button4-164-634-02
Sony Button Holder Inside
Triac, Diode or Resistor1-216-791-91
Sony C-res,u 3.3-1/16W J
Cabinet4-164-591-02
Sony Cabinet Evf
Cables, PCB Cable1-837-302-11
Sony Cable Assembly, Coaxial
Cables, PCB Cable1-829-414-63
Sony Cable, ConnectionY
Cables, PCB Cable1-837-283-11
Sony Cable, Flexible Flat(30 Core)
3-604-795-01
Sony Cap Bnc
1-164-933-11
Sony Cap Chip Ceramic 220Pf/16v(b)
1-114-569-11
Sony Cap, Ceramic 0.01Mf X7r 1608
1-100-965-91
Sony Cap, Ceramic 0.047Mf B (0603
1-114-570-11
Sony Cap, Ceramic 0.068Mf X7r 1608
1-112-815-91
Sony Cap, Ceramic 10Mf C (1608)
1-112-717-91
Sony Cap, Ceramic 1Uf B (1005)
1-100-159-91
Sony Cap, Ceramic 22Mf B (Smd) 3216
1-100-436-91
Sony Cap, Ceramic 33000Pf B (1608)
1-112-300-91
Sony Cap, Ceramic 4.7Mf B (2012)
1-100-703-91
Sony Cap, Chip Ceramic 10Mf B(3225)
1-100-055-21
Sony Cap, Chip Ceramic 22Mf B 3225
1-114-726-11
Sony Cap, Chip Ceramic 27Mf B 3216
1-125-891-91
Sony Cap, Chip Ceramic0.47m
1-128-991-21
Sony Cap, Elect 10Mf (5.3X5.5)
1-100-276-21
Sony Cap, Elect 22Mf (5.0X6.5)
1-112-784-11
Sony Cap, Elect(solid)
1-114-386-11
Sony Cap, Niobium Elect 100Mf 105
1-114-549-11
Sony Cap, Niobium Elect 47Uf
1-107-819-11
Sony Cap,ceramic 22000Pf/16v(1005)
1-100-567-81
Sony Cap,chip Ceramic 0.01Mf B 1005
Capacitor1-112-727-21
Sony Capasitor, Elect 47Mf(8.0x6.9)
Case4-164-567-02
Sony Case (Bottom)r
Case4-164-859-02
Sony Case (R)
CaseX-2187-375-4
Sony Case L Assy
Case4-164-566-02
Sony Case(bottom)l
Case3-278-657-01
Sony Case, Microphone
Case3-288-585-01
Sony Case, Panel
4-164-150-02
Sony Cd-rom (Instruction Manual)
4-164-150-01
Sony Cd-rom (Instruction Manual)
4-164-150-03
Sony Cd-rom (Instruction Manual)
4-268-461-05
Sony Cd-rom (Utility Software)
4-268-461-04
Sony Cd-rom (Utility Software)
4-130-649-05
Sony Cd-rom (Utility Software)
Frame4-164-617-01
Sony Center Frame Rear
1-100-581-81
Sony Chip Ceramic0.0047mf B1005
Connector1-535-757-11
Sony Chip, Checker (Connector)
1-535-877-22
Sony Chip,checker (Test Point)
3-285-955-01
Sony Cmos Protection Sheet A
3-285-956-01
Sony Cmos Protection Sheet B
Coil1-457-248-11
Sony Coil, Choke
Coil1-457-045-11
Sony Coil, Choke (8.2Uh)
Coil1-428-965-11
Sony Coil, Choke (Smd)
Coil1-456-046-21
Sony Coil, Choke (Smd) 10Uh (10X10)
Coil1-416-668-31
Sony Coil, Choke 10Uh
Coil1-416-344-11
Sony Coil, Choke 10Uh
Coil1-456-622-21
Sony Coil, Choke 1Uh
Coil1-457-339-12
Sony Coil, Choke 2.0Uh
Coil1-456-799-11
Sony Coil, Common Mode Choke
KitX-2188-877-5
Sony Cold Shoe KitY
Coil1-400-476-11
Sony Common Mode Choke Coil
Filter1-813-308-11
Sony Common Mode Filter (Smd)
1-694-535-11
Sony Condctor, Chip (0603)
1-216-864-91
Sony Conductor, Chip (1608)Y
Connector1-764-243-11
Sony Connector (Coaxial)
9-910-999-34
Sony Connector (Multiple)
Connector1-818-513-11
Sony Connector (Square Type)(usb)5p
Connector1-778-239-21
Sony Connector, Board To Board 40P
Connector1-821-530-12
Sony Connector, Ex Card (Host)
Guide1-821-531-14
Sony Connector, Ex Card(guide Unit)
Connector1-821-531-15
Sony Connector, Ex Card(guide Unit)
Connector1-844-939-11
Sony Connector, Ffc/fpc (Zif) St 10
Connector1-766-336-61
Sony Connector, Ffc/fpc 6P
Connector1-785-840-31
Sony Connector, Ffc/fpc(zif) An 15P
Connector1-774-260-31
Sony Connector, Ffc/fpc(zif) An 20P
Connector1-784-625-31
Sony Connector, Ffc/fpc(zif) An 30P
Connector1-778-646-31
Sony Connector, Ffc/fpc(zif) St 10P
Connector1-817-910-71
Sony Connector, Fpc (Zif) 45P
Connector1-794-099-14
Sony Connector, Round Type
Connector1-794-099-12
Sony Connector, Round Type
Connector1-818-607-12
Sony Connector, Square Type 10P
Connector1-794-276-21
Sony Connector, Square Type 4P
Connector1-784-240-11
Sony Converter, Coaxial ConnectorY
Power Cord1-757-562-11
Sony Cord Set, PowerY
Power Cord1-828-544-12
Sony Cord, Connection
Cover,CapX-2515-751-2
Sony Cover (Center) Assy
Connector3-285-383-03
Sony Cover Connector
Cover,Cap4-164-572-01
Sony Cover Hdmi
Cover,CapX-2515-727-1
Sony Cover Rear Assy Handle
Connector4-164-604-01
Sony Cushion Connector E
Connector4-164-600-01
Sony Cushion Connector F
Cushion3-284-472-01
Sony Cushion, Assign
Damper3-276-877-01
Sony Damper Lcd
6-503-406-01
Sony Di Dz3s082d0k8
Diode6-502-360-01
Sony Di Ma3s132dgls0
6-502-361-01
Sony Di Ma3s132egls0
Diode6-502-153-01
Sony Di Mazt082hg8s0
PlateJ-6029-140-2
Sony Diffusion Plate (Pla)Y
4-171-215-02
Sony Emc Flex Sheet
Triac, Diode or Resistor1-802-245-11
Sony Esd Suppressor
A-1753-920-A
Sony Evf Front Assy
Holder4-164-652-01
Sony Ex Card Holder
Cup4-164-856-01
Sony Eye CupY
J-7121-050-A
Sony Fb Adjustment Chart
Gasket , Seal4-166-653-01
Sony Fcc Gasket
1-412-363-11
Sony Ferrite, Emi (Smd)
1-400-580-21
Sony Ferrite, Emi (Smd)
1-400-462-21
Sony Ferrite, Emi (Smd) (1005)
1-400-461-21
Sony Ferrite, Emi (Smd) (1005)
Filter1-234-493-21
Sony Filter, Emi
Filter1-239-897-12
Sony Filter, Emi (Smd)
Filter1-239-896-12
Sony Filter, Emi (Smd)
Filter1-239-895-12
Sony Filter, Emi (Smd)
Filter1-234-939-21
Sony Filter, Emi Removal (Smd)
ScrewA-1538-803-A
Sony Fixing Screw Assembly
Leg, Foot, CasterX-2548-204-1
Sony Foot Food (G)
Guide3-278-317-02
Sony Fpc Guide
Frame4-164-878-02
Sony Front Frame
Fuse, Thermal Fuse, Breaker1-533-627-21
Sony Fuse Chip 5A/125v (6125)
J-6394-080-A
Sony Gray Scale Chart (16:9)
Lever4-164-592-01
Sony Guide Lock Lever
Handle3-278-662-11
Sony Handle (Main)
Cover,Cap3-276-875-03
Sony Handle Cover Low
Wire1-966-990-11
Sony Harness (Dpr311-ec68)
Wire1-966-994-12
Sony Harness (Dpr311-lcd)
Wire1-966-994-13
Sony Harness (Dpr311-lcd)
Wire1-966-992-11
Sony Harness (Tx131-vif46)
Wire1-966-993-12
Sony Harness, Sub (Asw68-led491)
Wire1-965-713-11
Sony Harness, Sub (Au313-sw1375)
Wire1-965-713-12
Sony Harness, Sub (Au313-sw1375)
Wire1-965-712-14
Sony Harness, Sub (Dc143-re250)
Wire1-965-712-13
Sony Harness, Sub (Dc143-re250)
Wire1-965-712-12
Sony Harness, Sub (Dc143-re250)
Wire1-965-715-12
Sony Harness, Sub (Ksw53-det44)
Wire1-965-718-13
Sony Harness, Sub (Ksw53-dr621)
Wire1-965-717-13
Sony Harness, Sub (Ksw53-ma161)
Wire1-965-717-12
Sony Harness, Sub (Ksw53-ma161)
Wire1-965-716-12
Sony Harness, Sub (Ksw53-rm213)
Wire1-965-716-11
Sony Harness, Sub (Ksw53-rm213)
Wire1-965-711-11
Sony Harness, Sub (Se912-au313)
Wire1-966-991-11
Sony Harness, Sub (Tx131-vif46)
Wire1-966-995-12
Sony Harness, Sub (Vif46-asw68)
4-164-618-01
Sony Heat Spreader Main
J-6326-120-A
Sony Hexagon Bit(for Torque Driver)Y
Hinge3-278-668-01
Sony Hinge
HingeX-2515-729-2
Sony Hinge Assembly
HingeX-2515-729-3
Sony Hinge Assy
Cover,Cap3-278-658-01
Sony Hinge Cover Low
Cover,Cap3-276-874-01
Sony Hinge Cover Top
Holder4-164-586-01
Sony Holder Belt
Holder4-164-625-01
Sony Holder Center Frame
Holder4-164-603-02
Sony Holder Flex Board
Holder4-164-624-01
Sony Holder I-link
Holder1-756-076-21
Sony Holder, Lithium Battery
Holder3-278-667-03
Sony Holder, Speaker
Holder3-678-684-00
Sony Holder,cable
Hood4-179-065-01
Sony Hood Lenz
Hook2-179-390-01
Sony Hook, Vf Lock
IC8-759-561-46
Sony Ic Ad8014art-reel7
IC6-712-183-01
Sony Ic Ad80194kstz-110
IC6-702-573-01
Sony Ic Ad9883akst-110
IC6-710-770-01
Sony Ic Ad9889bbbczrl-80
IC6-707-997-01
Sony Ic Adv7320kstz
IC6-708-882-01
Sony Ic Bh18ma3whfv-tr
IC6-706-640-01
Sony Ic Bh25fb1wg-tr
IC6-709-048-01
Sony Ic Bh33ma3whfv-tr
IC8-753-235-21
Sony Ic Cxd3175bgg-t6
IC8-753-276-37
Sony Ic Cxd3195agg-t6
IC6-712-922-01
Sony Ic Epcs16si8n
IC6-714-561-01
Sony Ic Fms4a16lch-60aer
IC6-714-589-01
Sony Ic Fms8b16lbh-60aer
IC6-711-650-01
Sony Ic Hy5ms7b2blfp-6edr-c
IC6-716-188-01
Sony Ic K4x56323pi-8gc6t
IC8-759-544-17
Sony Ic Lm75cimmx-3 Nopb
IC6-705-481-01
Sony Ic Lt1931es5#tr
IC6-705-480-01
Sony Ic Lt3467es6#tr
IC8-759-588-01
Sony Ic Ltc1473cgn-e2
IC6-711-852-01
Sony Ic Ltc1844es5-byp
IC6-706-220-01
Sony Ic Ltc3411ems#tr
IC6-713-169-01
Sony Ic Ltc3412aefe#tr
IC6-716-459-01
Sony Ic M24256-bwmn6tp(a)
IC6-703-223-01
Sony Ic Max668eub+t
IC6-707-828-01
Sony Ic Mm1431anre
IC6-708-889-01
Sony Ic Mp2105dj-lf-z
IC8-759-569-92
Sony Ic Njm2370u09-te2
IC8-759-338-95
Sony Ic Njm2903v (Te2)
IC6-703-858-01
Sony Ic Nju7042f(te1)
IC6-714-067-01
Sony Ic Pca9555db-t
IC6-715-126-03
Sony Ic Pf48f4000p0ztq-gem-dp-v111
IC6-715-125-03
Sony Ic Pf48f4000p0ztq-gem-im-v111
IC6-715-127-03
Sony Ic Pf48f4000p0ztq-gem-sy-v111
IC6-703-977-01
Sony Ic R1114q331d-tr-fa
IC6-600-681-01
Sony Ic Rs-770n
IC6-703-848-01
Sony Ic Sn74cb3t3306dcur
IC8-759-523-02
Sony Ic Tc74hc4053aft(el)
IC6-711-465-01
Sony Ic Tc74lcx125fk(el,k)
IC6-711-475-01
Sony Ic Tc74lcx541fk(el,k)
IC6-707-862-01
Sony Ic Tc74vhc05ft(ekj)
IC6-707-872-01
Sony Ic Tc74vhc221aft(ekj)
IC6-704-030-01
Sony Ic Tc7sa04fu(te85r)
IC6-700-599-01
Sony Ic Tc7sa08fu(te85r)
IC6-706-476-01
Sony Ic Tc7set04fu(t5rsojf)
IC6-706-481-01
Sony Ic Tc7set32fu(t5rsojf)
IC6-706-482-01
Sony Ic Tc7sh00fu(t5rsoyjf)
IC6-706-484-01
Sony Ic Tc7sh04fu(t5rsoyjf)
IC6-706-487-01
Sony Ic Tc7sh08fu(t5rsoyjf)
IC6-706-489-01
Sony Ic Tc7sh32fu(t5rsoyjf)
IC8-759-592-49
Sony Ic Tc7sz125fu(te85r)
IC8-759-592-50
Sony Ic Tc7sz126fu(te85r)
IC6-700-217-01
Sony Ic Tc7sz14fu(te85r)
IC8-759-592-48
Sony Ic Tc7sz32fu(te85r)
IC8-759-675-54
Sony Ic Tc7w53fk-te85r
IC6-705-338-01
Sony Ic Tk11250cmcl-g
Power Control6-709-646-01
Sony Ic Tlc2933aipwr
Power Control8-759-669-78
Sony Ic Tlc2933ipwr-12
IC8-759-488-34
Sony Ic Tlv2221cdbvr
IC8-759-462-09
Sony Ic Tlv431aidbvr
IC6-702-510-01
Sony Ic Tps5120dbtr
IC6-703-721-01
Sony Ic Tps54310pwpr
IC6-711-691-01
Sony Ic Tps63700drcr
IC6-712-939-01
Sony Ic Tps715a01drbr
IC8-759-111-56
Sony Ic Upc4572g2
IC6-702-628-01
Sony Ic Upd720122f1-dn1-e2-a
IC6-711-632-01
Sony Ic Upd72873agc-yeb-a
IC6-807-802-01
Sony Ic Upd78f0533agb(s)-402-ueu-a
IC6-807-802-02
Sony Ic Upd78f0533agb(s)-402-ueu-ae
IC6-807-803-01
Sony Ic Upd78f0533agb(s)-403-ueu-a
IC6-807-803-02
Sony Ic Upd78f0533agb(s)-403-ueu-ae
IC6-807-890-01
Sony Ic Upd78f0533agb(s)-404-ueu-a
IC6-807-890-02
Sony Ic Upd78f0533agb(s)-404-ueu-ae
IC6-713-390-01
Sony Ic V55c2128164vck7
3-270-554-02
Sony Individual Carton
1-412-979-21
Sony Inductor (Small Type)
1-412-987-31
Sony Inductor (Small Type) 4.70Uh
9-910-999-SI
Sony Inductor (Smd) 1.0Uh
1-414-854-41
Sony Inductor (Smd) 1000.0Uh
1-414-398-11
Sony Inductor (Smd) 10Uh
1-414-396-41
Sony Inductor (Smd) 4.7Uh
1-400-513-11
Sony Inductor 1.2Uh
1-400-870-21
Sony Inductor 2.2Uh
1-414-801-21
Sony Inductor 5.6Nh (1005)
1-414-400-11
Sony Inductor, 22Uh
1-469-549-21
Sony Inductor, Chip 1.0Uh (Lb2016)
1-469-555-21
Sony Inductor, Chip 10Uh (Lb2016)
1-481-585-21
Sony Inductor, Chip 4.7Uh
1-414-838-11
Sony Inductor, Chip 6.8Nh (1005)
1-412-983-31
Sony Inductor, Small Type 2.2Uh
Gasket , Seal4-170-734-01
Sony Inside Bottom Gasket
A-1748-440-D
Sony Inside Panel Assembly
PanelA-1748-440-B
Sony Inside Panel Assembly
PanelA-1748-440-C
Sony Inside Panel Assy
Jack1-794-525-12
Sony Jack, MicY
Jack1-793-459-11
Sony Jack,dc(polarity Unified Type)Y
Knob, Dial, Button3-963-822-12
Sony Knob, Lock
Knob, Dial, Button3-278-665-02
Sony Knob, Xlr Sw
Bracket, Flange, Blade3-278-663-02
Sony Ksw-53 Bracket
Cabinet3-276-878-02
Sony Lcd Cabinet
Module1-811-033-12
Sony Lcd Module
LCD PanelA-1748-439-B
Sony Lcd Module
3-276-881-01
Sony Lcd Support
Led8-719-063-83
Sony Led Sml-510mwt86
Bracket, Flange, Blade4-164-596-01
Sony Led-491 Bracket
LensA-1759-650-B
Sony Lens Assembly
LensA-1441-424-C
Sony Lens Packing Assembly
LensA-5023-756-A
Sony Lens Unit
Lid Seal4-164-568-01
Sony Lid Lithium Batery
Panel3-288-586-01
Sony Lid, Panel
X-2515-730-4
Sony Loupe Assembly
X-2515-730-3
Sony Loupe Assembly
X-2515-730-5
Sony Loupe Assy
X-2515-730-6
Sony Loupe Assy
X-2515-730-7
Sony Loupe Assy
X-2515-730-8
Sony Loupe Assy
Cushion4-164-597-01
Sony Ma Cushion
Frame4-164-616-02
Sony Main Frame Rear
4-163-183-12
Sony Manual, Instruction
4-163-183-11
Sony Manual, Instruction
4-163-183-03
Sony Manual, Instruction
4-163-183-13
Sony Manual, Instruction
4-163-183-23
Sony Manual, Instruction
Microphone3-278-661-01
Sony Mic Cusion(l)
Microphone3-278-660-01
Sony Mic Cusion(r)
3-278-656-02
Sony Mic Side Grille
Cover,CapA-1838-605-A
Sony Microphone Cover Assy_ Service
HolderX-2187-352-2
Sony Microphone Holder Assembly
Microphone1-542-748-11
Sony Microphone Unit
MicrophoneA-1748-435-A
Sony Microphone Unit Assy
Circuit BoardA-1738-050-A
Sony Mounted C.board, Asw-68
Circuit BoardA-1737-615-A
Sony Mounted C.board, Au-326
Circuit BoardA-1737-628-A
Sony Mounted C.board, Axm-42
Circuit BoardA-1737-577-A
Sony Mounted C.board, Cn-3258
Circuit BoardA-1737-578-A
Sony Mounted C.board, Cn-3259
Circuit BoardA-1737-579-A
Sony Mounted C.board, Cn-3273
Circuit BoardA-1738-049-A
Sony Mounted C.board, Dap-41
Circuit BoardA-1737-625-A
Sony Mounted C.board, Dc-152
Circuit BoardA-1737-627-A
Sony Mounted C.board, Det-52
Circuit BoardA-1738-053-A
Sony Mounted C.board, Dpr-311 Compl
Circuit BoardA-1737-622-B
Sony Mounted C.board, Dr-644
Circuit BoardA-1737-580-A
Sony Mounted C.board, Ec-68
Circuit BoardA-1737-581-A
Sony Mounted C.board, Hn-356
Circuit BoardA-1737-618-A
Sony Mounted C.board, Hn-360
Circuit BoardA-1737-626-A
Sony Mounted C.board, Hn-361
Circuit BoardA-1737-582-B
Sony Mounted C.board, Hn-363
Circuit BoardA-1737-624-A
Sony Mounted C.board, Ksw-55
Circuit BoardA-1737-623-A
Sony Mounted C.board, Led-491
Circuit BoardA-1737-629-A
Sony Mounted C.board, Led-494
Circuit BoardA-1737-620-A
Sony Mounted C.board, Ma-183
Circuit BoardA-1738-054-A
Sony Mounted C.board, Re-272 Compl
Circuit BoardA-1738-055-A
Sony Mounted C.board, Re-273 Compl
Circuit BoardA-1737-619-A
Sony Mounted C.board, Rm-224
Circuit BoardA-1737-616-A
Sony Mounted C.board, Sw-1478
Circuit BoardA-1737-630-A
Sony Mounted C.board, Sw-1484
Circuit BoardA-1737-617-A
Sony Mounted C.board, Swc-50
Circuit BoardA-1737-576-A
Sony Mounted C.board, Tx-131
Circuit BoardA-1737-621-A
Sony Mounted C.board, Vif-46
9-910-999-UU
Sony Mounted C.board,tx-131_dpr-311
Filter1-788-703-14
Sony Nd Filter, Optical
Filter1-788-703-15
Sony Nd Filter, Optical
Jack3-724-182-01
Sony Nut (Small Jack) M6 (Steel)
1-814-162-12
Sony Oscillator (Vco)
1-814-162-11
Sony Oscillator (Vco)
1-813-285-12
Sony Oscillator, Crystal
1-795-671-12
Sony Oscillator, Crystal
1-795-670-12
Sony Oscillator, Crystal
1-813-942-11
Sony Oscillator, Crystal 27Mhz
1-814-063-11
Sony Oscillator, Crystal 54Mhz
9-913-300-26
Sony Outide Panel
9-913-300-25
Sony Outide Panel
Gasket , Seal4-166-651-01
Sony Outside Panel Gasket A
3-276-872-01
Sony Packing Lcd
PanelX-2515-726-1
Sony Panel Assy Front
Panel4-164-731-01
Sony Panel Rear
J-6029-140-B
Sony Pattern Box
Connector1-816-463-11
Sony Pin, Connector (Pc Board)
Connector1-794-509-21
Sony Pin, Connector (Pc Board) (3P)
Connector1-794-057-11
Sony Pin, Connector (Pc Board) 2P
Connector1-774-731-21
Sony Pin, Connector (Pc Board) 5P
Connector1-817-872-11
Sony Pin, Connector 12P
Connector1-794-378-21
Sony Pin, Connector 14P
Connector1-817-871-11
Sony Pin, Connector 15P
Connector1-794-376-11
Sony Pin, Connector 4P
Connector1-770-621-21
Sony Pin, Connector 4P
Connector1-817-054-21
Sony Pin, Connector 6P
Connector1-794-377-21
Sony Pin, Connector 8P
Plate3-278-735-01
Sony Plate Bnc Ground
Plate4-164-734-01
Sony Plate Slide (Sw) Ornamental
Plate3-276-867-01
Sony Plate, Blind
Connector1-779-884-11
Sony Plug, Connector 4P
1-873-733-11
Sony Pwb, Fp-776
Slide4-164-733-01
Sony Rail (Rear) Slide
Slide4-164-733-02
Sony Rail (Rear) Slide
Switch4-164-594-01
Sony Rail Zoom Switch
Rail3-278-666-02
Sony Rail, Xlr Sw
PanelX-2515-728-1
Sony Rear Outside Panel Sub Assy
9-913-300-27
Sony Rear Panel
Knob, Dial, Button4-164-570-01
Sony Release Button Bt
Remote Control1-479-570-14
Sony Remote Control
Triac, Diode or Resistor1-208-889-11
Sony Res, Chip 1.2K (1005)
1-240-736-91
Sony Res, Chip 10 (0603)
1-240-784-91
Sony Res, Chip 1K (0603)
1-208-918-11
Sony Res, Chip 20K (1005)
1-240-768-91
Sony Res, Chip 220 (0603)
Triac, Diode or Resistor1-208-871-81
Sony Res, Chip 220 (1005)
1-246-191-91
Sony Res, Chip 220K (0603)
1-240-796-91
Sony Res, Chip 3.3K (0603)
Bush1-240-748-91
Sony Res, Chip 33 (0603)
1-240-749-91
Sony Res, Chip 36 (0603)
1-240-752-91
Sony Res, Chip 47 (0603)
1-240-776-91
Sony Res, Chip 470 (0603)
1-240-801-91
Sony Res, Chip 5.1K (0603)
1-240-753-91
Sony Res, Chip 51 (0603)
1-240-778-91
Sony Res, Chip 560 (0603)
1-240-826-91
Sony Res, Chip 68K (0603)
Triac, Diode or Resistor1-234-378-21
Sony Res, Network 10Kx4 (1005)
Triac, Diode or Resistor1-234-370-11
Sony Res, Network 22X4 (1005)
Triac, Diode or Resistor1-234-371-11
Sony Res, Network 47X4 (1005)
Rubber3-878-256-03
Sony Rubber Sw Key
Screw3-086-368-31
Sony Screw (M1.4),lock Ace P2
Screw3-964-010-33
Sony Screw (M2), 0 Part-no. P2 Main
Screw3-964-010-31
Sony Screw (M2), 0 Part-no. P2 Main
Screw3-968-729-53
Sony Screw (M2), Lock Ace, P2
Screw3-968-729-52
Sony Screw (M2), Lock Ace, P2
Screw3-056-233-21
Sony Screw (M2), Lock Ace, P2Y
Screw3-080-203-32
Sony Screw (M2), New Truster, P2Y
Screw3-657-657-00
Sony Screw (M5)Y
Screw4-673-655-01
Sony Screw +BY
7-685-134-19
Sony Screw +Btp2.6x8(ep-fe/znbk/cm2
Screw7-627-556-57
Sony Screw Precision +P 2.6X5 Type1
Screw2-630-005-31
Sony Screw(eco)new Truster,p2Y
Screw3-729-013-21
Sony Screw(m1.4x2.5),washer Head(st
Screw4-644-493-11
Sony Screw(m2.6x4), Lock Ace
Screw3-080-203-02
Sony Screw(m2x2.5),lock Ace,p2
Lock3-080-203-01
Sony Screw(m2x2.5),lock Ace,p2
Screw3-080-203-21
Sony Screw(m2x3),lock Ace,p2Y
Screw2-597-625-31
Sony Screw(m2x4),lock Ace,p2
Screw2-640-315-02
Sony Screw(m2x5),small (Steel)Y
Screw3-080-203-51
Sony Screw(m2x6),lock Ace,p2
Screw4-672-834-11
Sony Screw, +B Eg Grip
4-644-493-13
Sony Screw, New Truster (M2.6)
Screw4-644-493-12
Sony Screw, New Truster (M2.6)
Screw7-627-556-98
Sony Screw, Precision +P 2.6X8 Type1Y
Screw3-080-206-21
Sony Screw, Tapping, P2Y
Screw7-685-535-19
Sony Screw,+btp2.6x10(ep-fe/znbk/cmY
Screw7-685-792-09
Sony Screw,+ptt 2.6X6(ep-fe/znbk/cmY
Screw7-627-556-38
Sony Screw,precision +P2.6x4Y
9-910-999-SM
Sony Service Manual
9-968-701-02
Sony Service Manual
NSI
Sony Service Manual
4-178-006-01
Sony Sheet (5X13)
4-164-619-01
Sony Sheet Heat Transfer Main
4-164-620-01
Sony Sheet Heat Transfer Top
Panel3-278-640-01
Sony Sheet Panel Blind
4-164-656-01
Sony Sheet Radiation 1 A
4-164-626-01
Sony Sheet Radiation 1.5 A
4-164-627-01
Sony Sheet Radiation 1.5 B
4-164-571-01
Sony Sheet Radiation 1.5 C
4-164-628-01
Sony Sheet Radiation 1.5 D
4-169-621-01
Sony Sheet Radiation 1B
4-164-629-01
Sony Sheet Radiation 2 A
4-164-630-01
Sony Sheet Radiation 2 B
4-164-598-01
Sony Sheet Radiation Bottom
4-164-861-01
Sony Sheet, C Mos Flexible
Handle3-282-659-02
Sony Sheet, Handle Rear
Adhesive3-281-751-01
Sony Sheet, Hn-338 Adhesive
Speaker3-452-727-01
Sony Sheet, Speaker Holder
3-288-591-01
Sony Sheet, Vf Protection
Shield3-284-538-01
Sony Shield Sheet(mic)
KitX-2546-633-1
Sony Shoe Kit For Camcorder Y
4-164-569-02
Sony Shoe Rear Accessory
3-688-755-13
Sony Shoe, Accessory
Belt, Pulley3-278-903-02
Sony Shoulder BeltY
Connector1-562-645-11
Sony Socket,connector 3P
Connector1-562-647-11
Sony Socket,connector 5P
Spacer3-060-588-01
Sony Spacer, Lock
Speaker1-825-968-11
Sony Speaker (1.8Cm)
Speaker3-276-443-01
Sony Speaker Cushion
Speaker3-276-876-01
Sony Speaker Grille
Spring3-288-615-03
Sony SpringY
Ring3-302-492-00
Sony Spring (Steel)
X-2515-748-1
Sony Support Bottom Assy
Adhesive3-281-730-01
Sony Swc-47 Adhesive Sheet
Switch4-164-736-01
Sony Switch (Rear (H)) Slide
Switch4-164-735-01
Sony Switch (Rear (L)) Slide
Switch1-487-628-11
Sony Switch Block
Switch1-478-955-21
Sony Switch Block, Control(zs-5610)
Switch4-164-593-02
Sony Switch Zoom
Switch1-762-650-21
Sony Switch, Slide
Switch1-786-806-13
Sony Switch, Tact (With Led)
Switch1-786-998-14
Sony Switch, Tact (With Led)
Switch1-786-157-31
Sony Switch, Tactile
Switch1-570-985-21
Sony Switch, Toggle
Switch1-572-922-11
Sony Switch,slide (1-1-2)
Switch1-692-605-11
Sony Switch,slide (1-1-3)Y
Switch1-786-721-41
Sony Tactile SwitchY
Tape3-278-316-01
Sony Tape (C)
Tape3-878-890-02
Sony Tape (Swc48)
Terminal1-780-570-11
Sony Terminal Board, Battery
Terminal1-780-112-21
Sony Terminal, Contact
Plate4-164-635-01
Sony Top Plate
J-6325-400-A
Sony Torque Driver (3Kg)Y
J-6252-510-A
Sony Torque Driver 6Kg-cmY
6-551-877-01
Sony Tr 2Sc6054gr8s0
6-552-624-01
Sony Tr Si2301cds-t1-ge3
6-552-642-01
Sony Tr Si2304dds-t1-ge3
Transistor6-552-494-01
Sony Tr Si2307cds-t1-ge3
6-552-022-01
Sony Tr Si4436dy-t1-e3
6-552-801-01
Sony Tr Si7114dn-t1-ge3
Transistor8-729-105-08
Sony Transistor 2Sa1330-06
Transistor8-729-928-19
Sony Transistor 2Sa1774r
Transistor6-550-232-01
Sony Transistor 2Sa2029t2lq/r
Transistor8-729-271-31
Sony Transistor 2Sc2713-g
Transistor8-729-202-38
Sony Transistor 2Sc3326n-a
Transistor6-550-545-01
Sony Transistor 2Sc4617rY
Transistor8-729-024-45
Sony Transistor 2Sk2315ty
Transistor8-729-928-28
Sony Transistor Dta144ee-tl
Transistor6-550-239-01
Sony Transistor Dta144emt2l
Transistor8-729-929-27
Sony Transistor Dtc114te-tl
Transistor8-729-929-08
Sony Transistor Dtc123je-tl
Transistor8-729-928-82
Sony Transistor Dtc144ee-tlY
Transistor6-550-119-01
Sony Transistor Dtc144emt2l
Transistor6-551-736-01
Sony Transistor Fds6690as
Transistor6-551-294-01
Sony Transistor Mch6606-tl-e
Transistor6-550-980-01
Sony Transistor Rn1904(t5rsony,d,f)
Transistor6-550-981-01
Sony Transistor Rn1905(te85r.f)
Transistor6-551-041-01
Sony Transistor Rn4904(t5rsony,d,f)
Transistor6-550-832-01
Sony Transistor Si2301bds-t1
Transistor6-551-266-01
Sony Transistor Si2304bds-t1
Transistor6-551-265-01
Sony Transistor Si2307bds-t1
Transistor6-551-523-01
Sony Transistor Si7114dn-t1-e3
A-1759-651-C
Sony Unit, Prism Block
A-1539-606-B
Sony Unit, Prism Block
A-1759-651-B
Sony Unit, Prism Block
Cover,Cap4-164-565-01
Sony Usb Cover
1-803-974-11
Sony Varistor, Chip
1-803-742-11
Sony Varistor, Chip
1-813-828-21
Sony Vibrator, Crystal
1-813-345-21
Sony Vibrator, Crystal
1-813-052-21
Sony Vibrator, Crystal
1-813-049-21
Sony Vibrator, Crystal
1-781-913-22
Sony Vibrator, Crystal
1-781-913-21
Sony Vibrator, Crystal
1-781-913-11
Sony Vibrator, Crystal
Washer3-288-392-01
Sony Washer (D), Tripod
Washer3-946-996-01
Sony Washer Plastic (3.1X0.5)

About Sony

Sony is a manufacturer of consumer and professional electronics, gaming, and entertainment equipment. Sony Corporation is a Japanese multinational conglomerate corporation headquartered in Knan, Minato, Tokyo. Its diversified business includes consumer and professional electronics, gaming, and entertainment. Sony is a leading manufacturer of audio, video, communications, and information technology products for the consumer and professional markets. Sony products are reliable and affordable and there are options for any home or budget. They range from computers and professional technology to consumer electronics and home entertainment systems.
